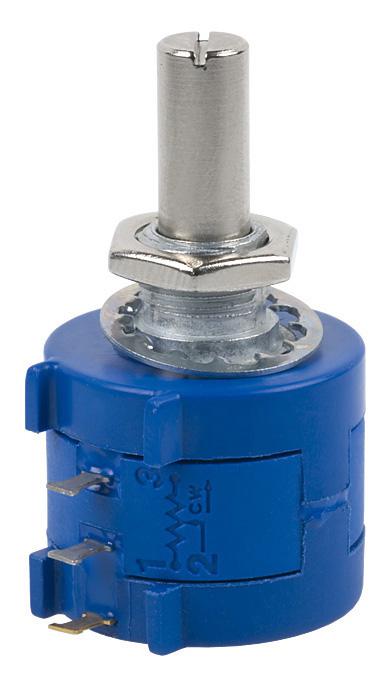

Bourns 3590S2202L Precision Potentiometer
The 3590S-2-202L is a high-precision wirewound potentiometer designed for demanding industrial and control applications. Featuring bushing mount and full-body sealing, it offers a power rating of 2W and a temperature coefficient of ±50 ppm/°C for exceptional stability. The device provides a 360-degree rotational angle plus an additional 10°, with options for plastic or metal shafts and bushings, and an optional AR pin for anti-rotation. It ensures high insulation resistance of 1000 MΩ, dielectric strength of 1500V, and IP67 environmental protection, suitable for precise, reliable control needs.
Bourns 3590S2202L Precision Potentiometer Specifications:
- Power Rating: 2 watts
- Resistance Range: 200 to 100 K ohms
- Resistance Tolerance: ±5%
- Linearity: 10.25 %
- Electrical Angle: 360° +10°, -0°
- Effective Electrical Angle: 360° +10°, -0°
- Minimum Resistance: 1 ohm or 0.1 % (whichever is greater)
- Insulation Resistance: 1000 MΩ
- Dielectric Withstanding Voltage: 1500 VAC minimum
- Temperature Coefficient: ±50 ppm/°C
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Vibration Resistance: 15G
- Shock Resistance: 50G
- Mechanical Rotation: 360° +10°, -0°
- Shaft and Bushing: Plastic or metal options with 3/8” x 5/16” or metric sizes
- Terminal Style: Solder lugs or PCB pins
- Environmental Protection: IP67 sealed version, IPxx unsealed
- Max Shaft Load: 0.35 N·cm (unsealed), 1.1 N·cm (sealed)
- Mounting Torque: 55-80 N·cm (plastic), 90-113 N·cm (metal)
Buy the Bourns 3590S-2-202L – Reliable Precision Potentiometer for Industrial Applications
Enhance your industrial control systems with the Bourns 3590S-2-202L precision potentiometer. Featuring full sealing, high stability, and options for plastic or metal shafts, it delivers reliable performance in demanding environments. Its 2W power rating and broad resistance range make it suitable for various applications, including instrumentation, automation, and process control. Easy to install with solder lugs or PCB pins, this high-quality component ensures long-term performance, environmental protection, and precise adjustment necessary for complex control systems. Order online today for fast delivery and superior reliability.
Buy Bourns 3590S-2-202L now and experience unmatched reliability and precise control for your industrial projects.
Frequently Asked Questions
Where can I buy Bourns 3590S2202L?
You can click on the BUY or RFQ button to purchase 3590S2202L from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3590S2202L?
You can download the 3590S2202L datasheet or visit the Bourns website for support.
Who is the manufacturer of 3590S2202L?
Bourns
