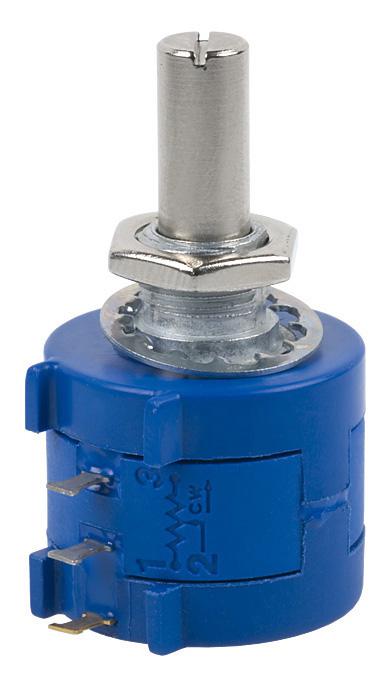

Bourns 3590S4103L Precision Potentiometer
The Bourns 3590S-4-103L is a precision potentiometer designed for demanding applications requiring high accuracy and reliability. Featuring a bushing mount and optional AR pin, this potentiometer is suitable for use in Human Machine Interface (HMI) systems and other applications where precise control is essential. It offers a wide resistance range, low noise, and robust environmental performance, including an IP65 rating for sealed versions. The potentiometer's design ensures consistent performance across a wide operating temperature range, making it ideal for harsh environments.
Bourns 3590S4103L Precision Potentiometer Specifications:
- Bushing Mount: Yes
- AR Pin Feature: Optional
- Shaft Material: Plastic or Metal
- Winding Type: Wirewound
- Shaft Terminations: Solder Lugs or PC Pins
- Sealing: Sealable (Full body seal)
- Application: HMI Applications
- Resistance Range: 200 to 100 K ohms
- Resistance Tolerance: ±5 %
- Linearity: ±0.25 %
- Electrical Angle: 3600 ° +10 °, -0 °
- Minimum Resistance: 1 ohm or 0.1 % maximum
- Noise: 100 ohms ENR maximum
- Dielectric Withstanding Voltage: 1,500 VAC minimum
- Power Rating: 2 watts @ +40 °C, 0 watt @ +125 °C
- Insulation Resistance: 1,000 megohms minimum
- Maximum RPM: 200
- Operating Temperature Range: -40 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±50 ppm/°C maximum/unit
- Vibration Resistance: 15 G
- Wiper Bounce: 0.1 millisecond maximum
- Shock Resistance: 50 G
- Load Life: 1,000 hours, 2 watts
- Resistance Shift (Load Life): ±2 % maximum
- Rotational Life: 1,000,000 shaft revolutions
- Resistance Shift (Rotational Life): ±5 % maximum
- Moisture Resistance: ±2 % maximum
- IP Rating (Sealed): IP 65
- IP Rating (Unsealed): IP 40
- Stop Strength: 45 N-cm (64 oz.-in.) minimum
- Mechanical Angle: 3600 ° +10 °, -0 °
- Torque (Starting & Running): 0.85 N-cm (1.2 oz.-in.) (unsealed), 1.41 N-cm (2.0 oz.-in.) (sealed)
- Mounting Torque: 55-80 N-cm (5-7 lb-in.) (plastic), 90-113 N-cm (8-10 in-lb.) (metal)
- Shaft Runout: 0.13 mm (0.005 in.) T.I.R.
- Lateral Runout: 0.20 mm (0.008 in.) T.I.R.
- Shaft End Play: 0.25 mm (0.010 in.) T.I.R.
- Shaft Radial Play: N/A
