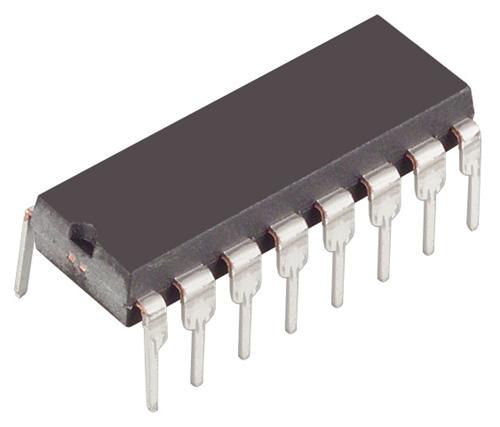

Bourns 4114R1271LF Molded DIP Resistor Network
Bourns 4114R-1-271LF is a thick film molded DIP resistor network designed for a wide range of applications including DRAM, SCSI, and R/2R ladder networks. These networks offer precision resistance values with tight tolerances and are compatible with automatic insertion equipment. The robust construction ensures superior package integrity, and the RoHS compliant versions meet environmental standards. The resistor networks are available in isolated, bussed, and dual configurations to meet diverse circuit design needs.
Bourns 4114R1271LF Molded DIP Resistor Network Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 MΩ)
- TCR Tracking: 50 ppm/°C
- Resistor Tolerance: See circuits
- Operating Temperature: -55 °C to +125 °C
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Lead Solderability: Meet requirements of MIL-STD-202 Method 208
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.25 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Lead Frame Material: Copper, solder coated
- Body Material: Novolac epoxy
- Power Rating per Resistor: 0.250 watt (at 70 °C)
- Package Power Rating: {'4108R': '1.69 watts', '4114R': '2.00 watts', '4116R': '2.25 watts', '4118R': '2.50 watts', '4120R': '2.80 watts'}
Buy the 4114R-1-271LF BOURNS Molded DIP Resistor Network | myMectronic
Purchase the Bourns 4114R-1-271LF Molded DIP Resistor Network securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4114R1271LF?
You can click on the BUY or RFQ button to purchase 4114R1271LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4114R1271LF?
You can download the 4114R1271LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4114R1271LF?
Bourns
