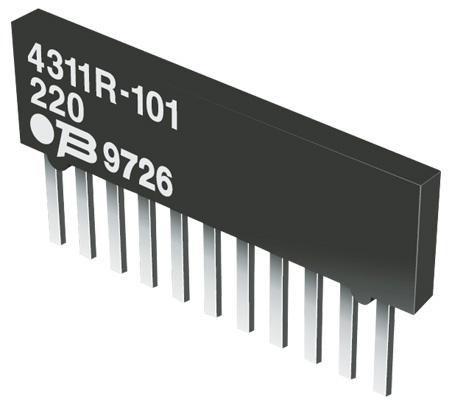

Bourns 4309R101472LF Thick Film Molded SIP
Bourns 4309R-101-472LF is a thick film molded SIP resistor network designed for a variety of applications including DRAM, SCSI, and R/2R ladder networks. These resistors offer a low profile, making them compatible with DIPs and automatic insertion equipment. They are available in RoHS compliant versions and provide superior package integrity. The series offers a range of resistance values and configurations to meet diverse circuit requirements. Governing dimensions are in metric, with inch dimensions provided as an approximation.
Bourns 4309R101472LF Thick Film Molded SIP Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- TCR Tracking: 50 ppm/°C
- Resistor Tolerance: See circuits
- Operating Temperature: -55 °C to +125 °C
- Power Rating: Derate to zero power from +70 °C to +125 °C
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Flammability: Conforms to UL94V-0
- Lead Frame Material: Copper, solder coated
- Body Material: Novolac epoxy
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow
- Resistance Tolerance Codes: {'Blank': '±2 %', 'F': '±1 % (100 ohms - 1 megohm)', 'D': '±0.5 % (100 ohms - 1 megohm)'}
- Termination Codes: {'LF': 'Tin-plated (RoHS compliant version)', 'L': 'Tin-plated (RoHS compliant version)', 'Blank': 'Tin/Lead-plated'}
