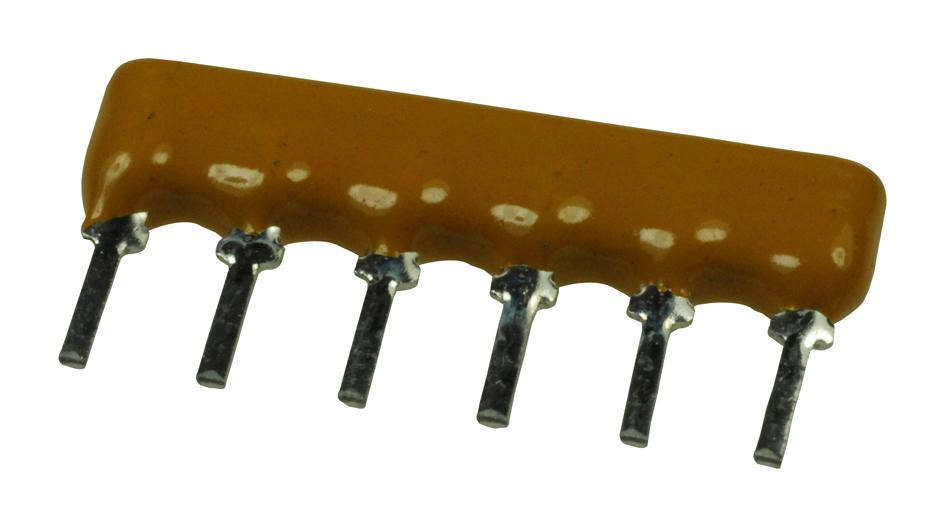

Bourns 4606X102104LF Thick Film Conformal SIP Resistor
Bourns 4606X-102-104LF thick film conformal SIP resistors are designed for a variety of applications requiring compact size and reliable performance. These resistors offer permanent identification through contrasting background marking, are RoHS compliant, and feature a low profile compatible with DIPs. Available in bulk or Ammo-pak packaging, they provide design flexibility and are recommended for rosin flux and no-clean flux processes. The series includes bussed, isolated, and dual terminator configurations to meet diverse circuit requirements.
Bourns 4606X102104LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Resistance Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: - 101 = Bussed, - 102 = Isolated, - 104 = Dual Terminator
- Marking: Permanent identification on contrasting background
- Pin Count: 4 to 14
- Maximum Package Length: 2.54mm (.100") times the number of pins, less .005mm (.002")
- Governing Dimensions: Metric
- Terminal Centerline to Centerline Measurements: Made at point of emergence of the lead from the body
