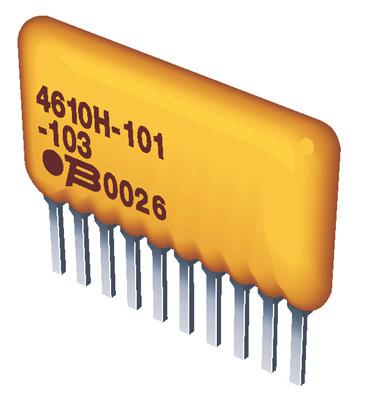

Bourns 4608X102562LF Thick Film Conformal SIP Resistor
Bourns 4608X-102-562LF thick film conformal SIP resistors are designed for applications requiring compact size and precise resistance. These resistors offer a low profile, making them compatible with DIPs, and are RoHS compliant. They are available in a wide assortment of pin packages, enhancing design flexibility. The resistors feature permanent identification through contrasting background marking and are recommended for rosin flux and solvent clean processes. They are commonly used in DRAM applications, R/2R ladder networks, and SCSI applications.
Bourns 4608X102562LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Resistance Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Pin Configuration (X): Thick Film Low Profile
- Electrical Configuration (102): Isolated
- Typical Part Marking: 8X-2-RC
- Resistance Code: First 2 digits are significant, third digit represents zeros
- Resistance Tolerance Code: Blank = ±2 %, F = ±1 % (100 ohms - 5 megohms)
- Termination: LF = Sn/Ag/Cu-plated (RoHS compliant)
Buy the 4608X-102-562LF BOURNS Thick Film Conformal SIP Resistor | myMectronic
Purchase the Bourns 4608X-102-562LF resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4608X102562LF?
You can click on the BUY or RFQ button to purchase 4608X102562LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4608X102562LF?
You can download the 4608X102562LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4608X102562LF?
Bourns
