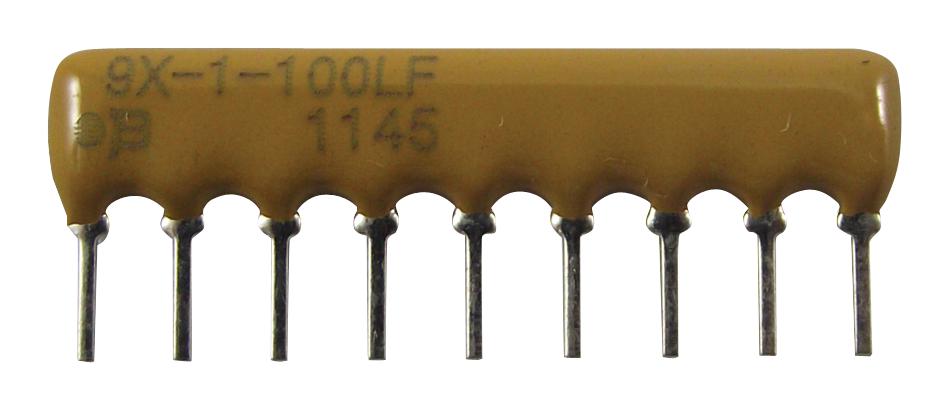

Bourns 4609X101101LF Thick Film Conformal SIP Resistor
Bourns 4600X Series Thick Film Conformal SIP Resistors are designed for applications requiring a compact and reliable resistor network. These resistors offer a low profile, making them compatible with DIPs, and are available in a wide assortment of pin packages to enhance design flexibility. They are RoHS compliant and feature permanent identification markings for easy recognition. The series is suitable for DRAM applications, dual terminator resistor networks, R/2R ladder networks, and SCSI applications.
Bourns 4609X101101LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- TCR Tracking: 50 ppm/°C
- Resistor Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP, X = Thick Film Low Profile, 101 = Bussed, 102 = Isolated, 104 = Dual Terminator
- Features: Marking on contrasting background, RoHS compliant, Low profile compatible with DIPs, Wide assortment of pin packages, Ammo-pak packaging available, Recommended for rosin flux and solvent clean processes
- Maximum package length: 2.54mm (.100") times the number of pins, less .005mm (.002")
- Governing dimensions: Metric, dimensions in parentheses are inches and are approximate
- Terminal centerline to centerline measurements: Made at point of emergence of the lead from the body
Buy the 4609X-101-101LF BOURNS Thick Film Conformal SIP Resistor | myMectronic
Purchase the Bourns 4609X-101-101LF Thick Film Conformal SIP Resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4609X101101LF?
You can click on the BUY or RFQ button to purchase 4609X101101LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4609X101101LF?
You can download the 4609X101101LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4609X101101LF?
Bourns
