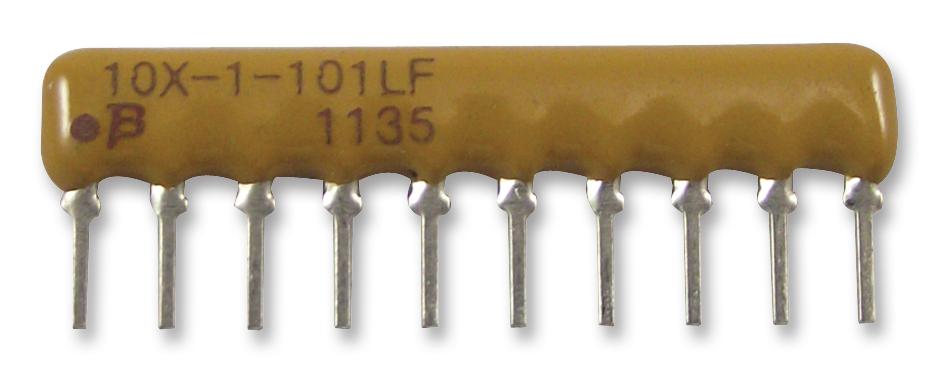

Bourns 4610X101153LF Thick Film Conformal SIP Resistor
The Bourns 4610X series offers conformal SIP resistors designed for various applications requiring precise resistance and compact size. These resistors feature permanent identification markings for easy traceability and are RoHS compliant, meeting environmental standards. The low-profile design enhances design flexibility, and the wide assortment of pin packages caters to diverse layout requirements. They are recommended for rosin flux and no-clean flux processes, ensuring reliable soldering and performance.
Bourns 4610X101153LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Resistance Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: - 101 = Bussed, - 102 = Isolated, - 104 = Dual Terminator
- Marking: Permanent identification
- Pin Packages: Enhances design flexibility
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow
