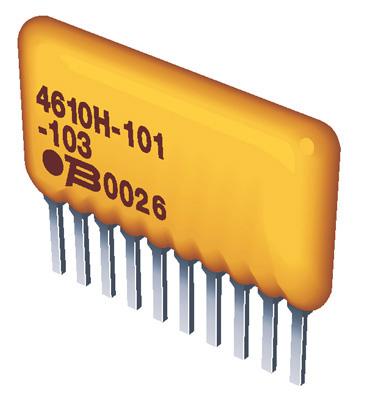

Bourns 4610X102681LF Thick Film Conformal SIP Resistor
The Bourns 4610X series provides thick film conformal SIP resistors designed for various applications requiring compact and reliable resistance solutions. These resistors feature permanent identification markings for easy traceability and are RoHS compliant, meeting environmental standards. The low-profile design allows for compatibility with DIP configurations, enhancing design flexibility. Available in a range of pin packages and resistance values, the 4610X series is suitable for applications such as DRAM, dual terminator networks, SCSI, and more. They are recommended for rosin flux and no-clean flux processes, ensuring reliable performance in diverse industrial settings.
Bourns 4610X102681LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Resistance Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: - 101 = Bussed, - 102 = Isolated, - 104 = Dual Terminator
- Features: Marking on contrasting background, RoHS compliant, Low profile compatible with DIPs, Wide assortment of pin packages, Ammo-pak packaging available
- Maximum package length: 2.54mm (.100") times the number of pins, less .005mm (.002")
- Governing dimensions: Metric, dimensions in parentheses are inches and are approximate
- Terminal centerline to centerline measurements: Made at point of emergence of the lead from the body
Buy the 4610X-102-681LF BOURNS Thick Film Conformal SIP Resistor | myMectronic
Purchase the Bourns 4610X-102-681LF Thick Film Conformal SIP Resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4610X102681LF?
You can click on the BUY or RFQ button to purchase 4610X102681LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4610X102681LF?
You can download the 4610X102681LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4610X102681LF?
Bourns
