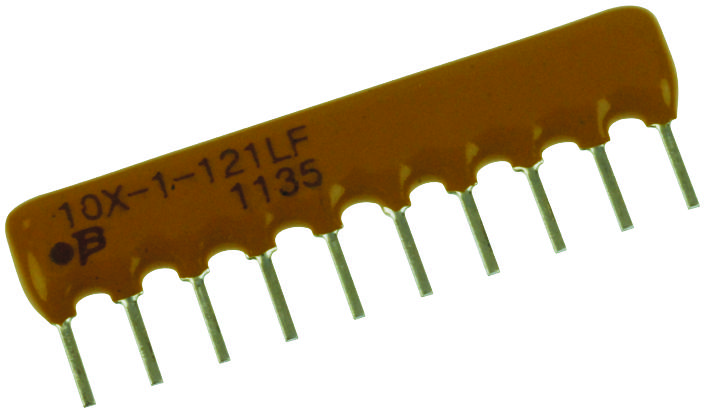

Bourns 4610X104331471L Thick Film Conformal SIP Resistor
Bourns 4600X series Thick Film Conformal SIP resistors are designed for a variety of applications requiring compact, reliable resistor networks. These resistors feature a low profile, making them compatible with DIPs, and are available in bussed, isolated, and dual terminator configurations. They offer permanent identification through contrasting background marking, RoHS compliance, and are recommended for rosin flux and solvent clean processes. The series is suitable for DRAM applications, R/2R ladder networks, and SCSI applications, providing a flexible and efficient solution for circuit design.
Bourns 4610X104331471L Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Tracking: 50 ppm/°C maximum
- Resistor Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: -101 = Bussed, -102 = Isolated, -104 = Dual Terminator
- Marking: Contrasting background for permanent identification
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow
Buy the 4610X-104-331/471L BOURNS Thick Film Conformal SIP Resistor | myMectronic
Purchase Bourns 4610X-104-331/471L Thick Film Conformal SIP Resistors securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4610X104331471L?
You can click on the BUY or RFQ button to purchase 4610X104331471L from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4610X104331471L?
You can download the 4610X104331471L datasheet or visit the Bourns website for support.
Who is the manufacturer of 4610X104331471L?
Bourns
