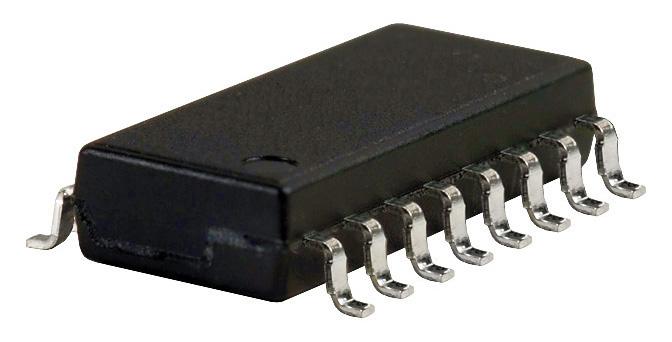

Bourns 4816P1102LF SMD Trimming Potentiometer
The Bourns 4816P-1-102LF is a thick film surface mount trimming potentiometer designed for a wide range of applications. It boasts AEC-Q200 qualification, ensuring suitability for automotive environments, and is RoHS compliant. The potentiometer's compact size and standard E.I.A. package compatibility make it ideal for automated placement equipment. Available with isolated, bussed, or dual terminator configurations, it provides flexibility in circuit design. The device offers a resistance range from 10 ohms to 2.2 megohms and is characterized by low temperature coefficient of resistance and excellent insulation resistance. It is commonly used in DRAM applications, R/2R ladder networks, and SCSI applications.
Bourns 4816P1102LF SMD Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2.2 megohms
- Maximum Operating Voltage: 50 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (50 Ω and above), ±250 ppm/°C (below 50 Ω)
- TCR Tracking: 50 ppm/°C max. (for values > 50 Ω), 100 ppm/°C (for values ≤ 50 Ω)
- Operating Temperature: -55 °C to +125 °C
- Insulation Resistance: 10,000 megohms min.
- Dielectric Withstanding Voltage: 200 VRMS
- Flammability: Conforms to UL94V-0
- Lead Frame Material: Copper, solder coated
- Body Material: Thermoplastic
- Resistance Tolerance: ±2 % (standard), ±1 % (available)
- Power Rating per Resistor: 0.160 watt (1 circuit), 0.080 watt (2 circuit)
- Package Power Rating at 70 °C: {'4814P': '1.12 watts', '4816P': '1.28 watts', '4818P': '1.44 watts', '4820P': '1.60 watts'}
Buy the 4816P-1-102LF BOURNS SMD Trimming Potentiometer | myMectronic
Purchase the Bourns 4816P-1-102LF securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4816P1102LF?
You can click on the BUY or RFQ button to purchase 4816P1102LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4816P1102LF?
You can download the 4816P1102LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4816P1102LF?
Bourns
