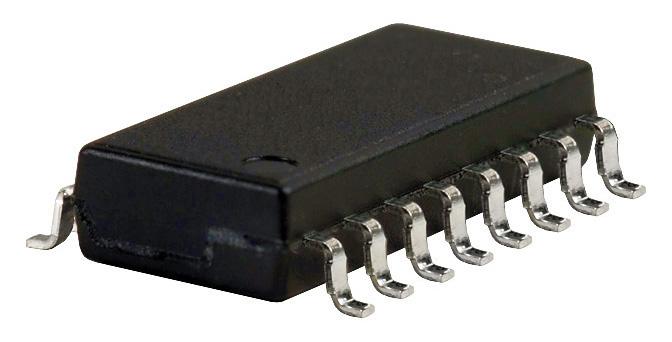

Bourns 4816P2103LF SMD Trimming Potentiometer
The Bourns 4816P-2-103LF is a compact, surface mount trimming potentiometer designed for diverse industrial applications. Its AEC-Q200 qualification ensures reliability in automotive environments, while RoHS compliance aligns with environmental regulations. This potentiometer provides adjustable resistance from 10 ohms to 2.2 megohms, making it suitable for applications such as circuit calibration, sensor adjustment, and fine-tuning of electronic systems. The standard E.I.A. package compatibility simplifies integration into automated assembly processes, and the compliant leads reduce solder joint fatigue.
Bourns 4816P2103LF SMD Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2.2 megohms
- Maximum Operating Voltage: 50 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (50 Ω and above), ±250 ppm/°C (below 50 Ω)
- TCR Tracking: 50 ppm/°C max. (for values > 50 Ω), 100 ppm/°C (for values ≤ 50 Ω)
- Operating Temperature: -55 °C to +125 °C
- Insulation Resistance: 10,000 megohms min.
- Dielectric Withstanding Voltage: 200 VRMS
- Flammability: Conforms to UL94V-0
- Lead Frame Material: Copper, solder coated
- Body Material: Thermoplastic
- Resistance Tolerance: ±2 % (standard), ±1 % (available)
- Power Rating per Resistor: 0.160 watt (1 circuit), 0.080 watt (2 circuit)
- Package Power Rating at 70 °C: {'4814P': '1.12 watts', '4816P': '1.28 watts', '4818P': '1.44 watts', '4820P': '1.60 watts'}
Buy the 4816P-2-103LF BOURNS SMD Trimming Potentiometer | myMectronic
Purchase the Bourns 4816P-2-103LF securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4816P2103LF?
You can click on the BUY or RFQ button to purchase 4816P2103LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4816P2103LF?
You can download the 4816P2103LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4816P2103LF?
Bourns
