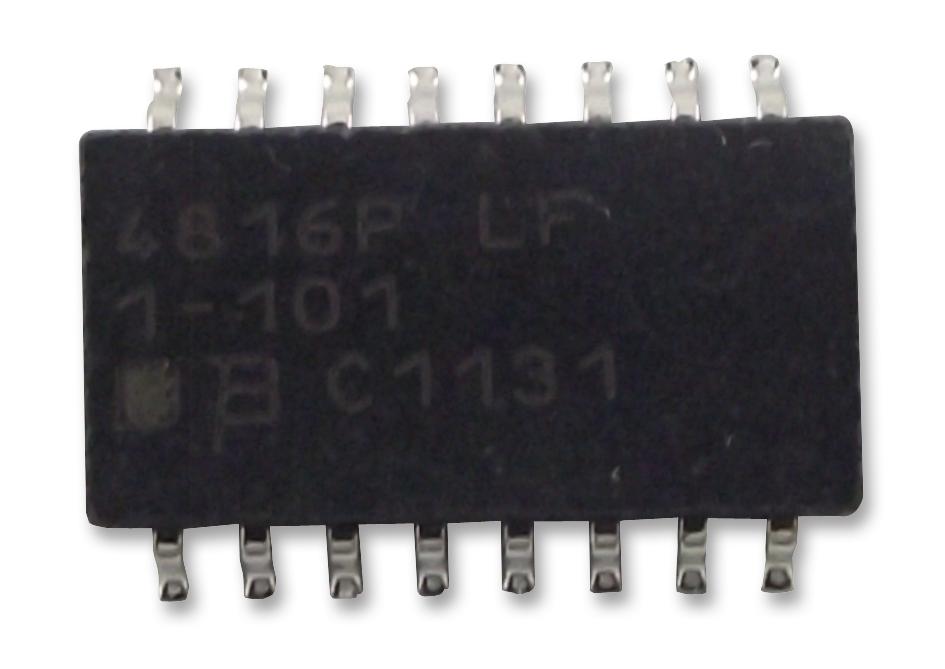

Bourns 4816PT01223LF Thick Film Surface Mount Resistor
The 4800P Series Thick Film Surface Mount Resistors are high-reliability components designed for precise resistance values from 10 ohms to 2.2 megaohms. Featuring RoHS compliance, they provide excellent environmental stability and are suitable for automatic placement in surface-mount technology. These resistors offer low power dissipation, high insulation resistance, and are rated for operation up to 125°C. Their robust construction meets MIL-STD-202 requirements, with a variety of electrical configurations including isolated, bussed, and dual terminator options. Ideal for demanding electronic applications that require accuracy and durability.
Bourns 4816PT01223LF Thick Film Surface Mount Resistor Specifications:
- Resistance Range: 10 ohms to 2.2 megaohms
- Maximum Operating Voltage: 0 V
- Temperature Coefficient of Resistance: +100 ppm/°C for 50 Q and above; +250 ppm/°C below 50 Q
- Operating Temperature: -55°C to +125°C
- Insulation Resistance: >10,000 megohms
- Dielectric Withstanding Voltage: 200 VRMS
- Flammability: UL94V-0
- Lead Frame Material: Copper, solder coated
- Dimensions: Various based on models (e.g., body diameter approximately 4.7 mm for 4816P)
- Environmental Tests: MIL-STD-202 compliant, including overload, load life, moisture resistance, soldering heat, and thermal shock
- Power Ratings at 70°C: 1.12W for 4814P, 1.28W for 4816P, 1.44W for 4818P, 1.60W for 4820P
Buy the Buy Bourns 4800P Series Thick Film Surface Mount Resistors Part Number 4816PT01223LF Online
Order the Bourns 4800P series Thick Film Surface Mount Resistor online today and enjoy fast delivery, competitive prices, and reliable quality. Perfect for high-performance electronic circuits requiring precise resistance, environmental stability, and RoHS compliance. These resistors are ideal for automated assembly, offering diverse configurations such as isolated, bussed, and dual terminator options. Their high insulation resistance and durability ensure long-term stable operation in demanding environments, making them essential components for quality manufacturing and advanced circuitry.
Buy Bourns 4816PT01223LF now and experience unmatched reliability and performance with high-temperature tolerance and durable construction.
Frequently Asked Questions
Where can I buy Bourns 4816PT01223LF?
You can click on the BUY or RFQ button to purchase 4816PT01223LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4816PT01223LF?
You can download the 4816PT01223LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4816PT01223LF?
Bourns
