Bourns 4816PT01472LF Thick Film Resistor
The 4800P series resistors are thick film surface mount components designed for precision applications, offering RoHS compliance, various electrical configurations, and robust environmental resistance. Suitable for digital and analog circuits, they feature a resistance range from 10 ohms to 2.2 megohms, high insulation resistance, and excellent solderability. Models like 4816P-1 are ideal for automotive, industrial, and consumer electronics, providing reliable performance under thermal and mechanical stress. They conform to UL94V-0 flammability standards and are available in tape and reel packaging for automated assembly. Custom circuits and multiple configurations are also supported.
Bourns 4816PT01472LF Thick Film Resistor Specifications:
- Resistance range: 10 ohms to 2.2 megohms
- Maximum operating voltage: 0 V
- Temperature coefficient of resistance: +100 ppm/°C for >50 Q, +250 ppm/°C for <50 Q
- Operating temperature: -55°C to +125°C
- Insulation resistance: 10,000 megohms min.
- Dielectric withstanding voltage: 200 VRMS
- Flammability: UL94V-0
- Lead frame material: Copper, solder coated
- Body material: Thermoplastic
- RoHS compliant: Yes
- Packaging: Tape and reel, standard 48 pins
- Resistance tolerance: ±2%, ±1% (from 100 ohms to 1 megohm), ±0.5% tolerance options
- Power rating at 70°C: 0.160 to 1.60 watts depending on model
- Environmental tests per MIL-STD-202 performed for reliability
- Compliance: AEC-Q200 qualified for automotive applications

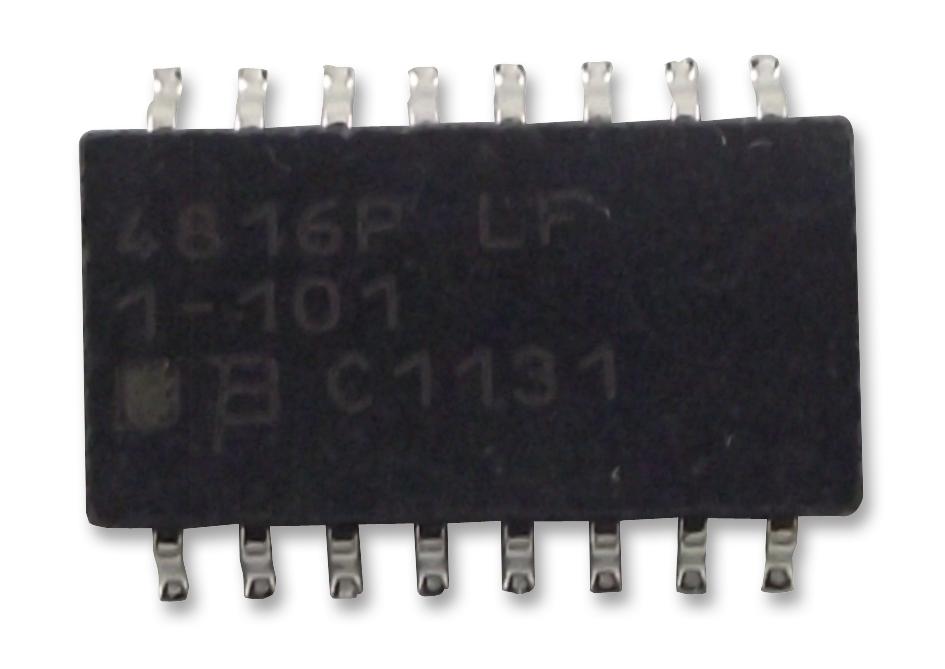

Buy the Buy Bourns 4800P Series Thick Film Resistor Part Number 4816PT01472LF Online
Order the Bourns 4800P series thick film resistor, model 4816PT01472LF, online today. These reliable surface mount components feature excellent thermal stability, high insulation resistance, and RoHS compliance. Designed for demanding environments, they support resistance values from 10 ohms to 2.2 megohms, suitable for automotive, industrial, and consumer electronics. With customizable circuit options, robust environmental resistance, and tape and reel packaging, these resistors ensure easy integration into automated assembly workflows. Trust Bourns for precision, durability, and superior quality in your electronic designs.
Get Bourns 4816PT01472LF today—built for precision, automotive reliability, and long-lasting durability.
Frequently Asked Questions
Where can I buy Bourns 4816PT01472LF?
You can click on the BUY or RFQ button to purchase 4816PT01472LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4816PT01472LF?
You can download the 4816PT01472LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4816PT01472LF?
Bourns
