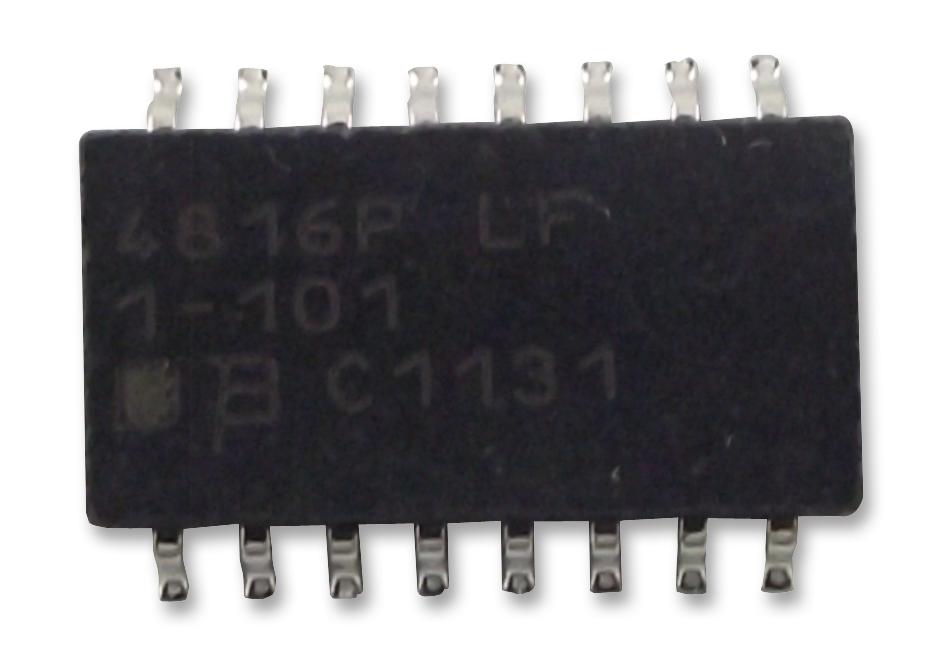

Bourns 4816PT01681LF Surface Mount Resistor
The 4800P Series is a high-reliability thick film surface mount resistor designed for industrial and electronic application environments. It features a resistance range from 10 ohms to 2.2 megohms, with RoHS compliant lead finishes and standard tape and reel packaging for automated assembly. With a maximum operating voltage of 0 V, it offers excellent stability, insulation resistance of at least 10,000 megohms, and is rated for temperatures between -55°C and +125°C. Suitable for precision resistor networks and embedded systems, this series adheres to MIL-STD-202 testing standards, ensuring durability through moisture, solder heat, overload, and thermal shock tests.
Bourns 4816PT01681LF Surface Mount Resistor Specifications:
- Resistance Range: 10 ohms to 2.2 megohms
- Maximum Operating Voltage: 0 V
- Temperature Coefficient of Resistance: +100 ppm/°C for 50Q and above, +250 ppm/°C for below 50Q
- Operating Temperature: -55°C to +125°C
- Insulation Resistance: 10,000 megohms min.
- Dielectric Withstanding Voltage: -200 VRMS
- Lead Solderability: Meets MIL-STD-202 Method 208
- Body Material: Thermoplastic, copper solder-coated lead frame
- Flammability: UL94V-0
- Environmental Testing: MIL-STD-202, moisture resistance, thermal shock, overload, and solder heat resistance
- Dimensions: Based on model, standard land pattern conforms to IPC-SM-782, lead coplanarity ≤ 0.102 inch
- RoHS Compliance: Yes, with packaging and termination options
- Series Power Ratings at 70°C: 1.12W (4814P), 1.28W (4816P), 1.44W (4818P), 1.60W (4820P)
Buy the Bourns 4816PT01681LF – Reliable Resistance for Industrial Applications
Purchase the Bourns 4816PT01681LF surface mount resistor online now and enhance your electronic assembly with industry-leading reliability and temperature stability. This resistor series offers resistance from 10 ohms to 2.2 megohms, RoHS compliance, and a robust construction suitable for demanding industrial, automotive, and consumer electronics environments. Featuring tape and reel packaging for automated placement, it meets stringent MIL-STD-202 tests, ensuring durability under thermal, moisture, and overload conditions. Secure your supply of high-quality resistors today and elevate your manufacturing processes.
Order your Bourns Series 4816PT01681LF rugged resistor today and ensure your electronic projects benefit from dependable performance and European quality standards.
Frequently Asked Questions
Where can I buy Bourns 4816PT01681LF?
You can click on the BUY or RFQ button to purchase 4816PT01681LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4816PT01681LF?
You can download the 4816PT01681LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4816PT01681LF?
Bourns
