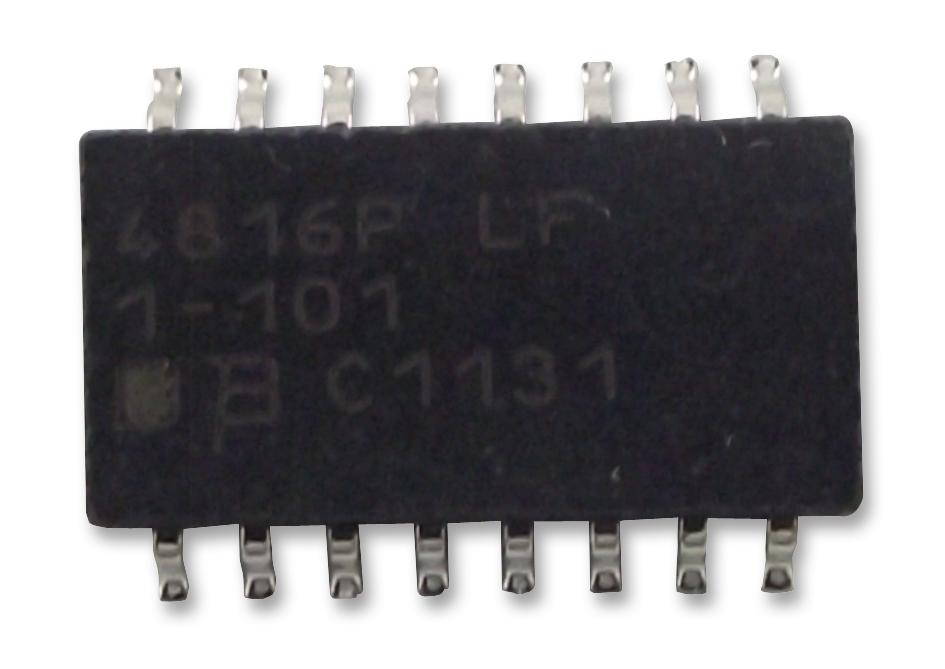

Bourns 4816PT02102LF Industrial Resistor Network
The 4800P Series are thick film surface mount resistors designed for reliable performance in industrial applications. Suitable for automatic placement, these RoHS-compliant resistors come in standard tape and reel packaging. They feature a resistance range from 10 ohms to 2.2 megohms, with a max operating voltage of 0 V and temperature coefficients of +100 ppm/°C for resistance above 50 Q. Their environmental and electrical characteristics conform to MIL-STD-202, including insulation resistance of 10,000 megohms minimum. Crafted from copper, solder-coated lead frames, and thermoplastic body materials, these resistors support diverse circuit configurations with various resistance tolerances, including ±1%, ±2%, or ±0.5%. Ideal for circuit protection, biasing, and voltage division, they ensure durability through thermal shock, moisture resistance, and soldering heat tests, making them suitable for demanding electronic environments.
Bourns 4816PT02102LF Industrial Resistor Network Specifications:
- Resistance Range: 10 ohms to 2.2 megohms
- Maximum Operating Voltage: 0 V
- Temperature Coefficient of Resistance: +100 ppm/°C above 50 Q, +250 ppm/°C below 50 Q
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: -200 VRMS
- Environmental Testing: MIL-STD-202 compliance, short time overload ±0.25%, load life 41.00%, moisture resistance +0.50%, resistance to soldering heat +0.25%, thermal shock ±0.25%
- Physical Materials: Copper, solder-coated lead frame, thermoplastic body
- Flammability: UL 94V-0
- Lead Coplanarity: Max. 102 mm (0.004 inch)
- Package Power Ratings: 1.12W to 1.60W at 70°C depending on model
Buy the Bourns 4816PT02102LF – Reliable Resistor Networks for Industrial Applications
Purchase the Bourns 4816PT02102LF resistor network online today and ensure your electronic designs are powered by high-quality, durable, and RoHS-compliant components. These thick film surface mount resistors offer excellent environmental resilience, including MIL-STD-202 tested durability, insulation resistance, and thermal stability, making them ideal for industrial, automotive, and telecommunications applications. With a resistance range from 10 ohms to 2.2 megohms, they support diverse circuit configurations and precise tolerances such as ±1% and ±0.5%. Order now and benefit from fast shipping and authorized sourcing.
Buy Bourns 4816PT02102LF now and experience unmatched reliability and performance for demanding electronic circuits.
