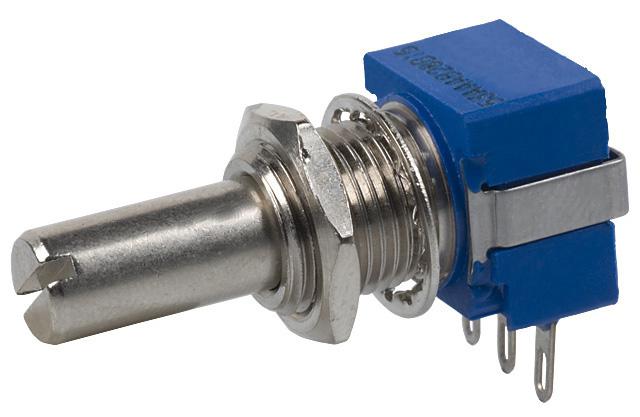

Bourns 51CADE28A10L Sealed Square Control
The Bourns 51CAD-E28-A10L is a sealed 1/2” (12.5 mm) square control potentiometer designed for demanding industrial environments. This potentiometer offers both linear and audio taper options, making it suitable for a wide range of applications. It is RoHS compliant and features a robust construction with a metal bushing and shaft. The sealed design protects against moisture and contaminants, making it ideal for applications where reliability is critical. It is commonly used in control panels, industrial equipment, and automotive applications where precise and reliable position sensing is required.
Bourns 51CADE28A10L Sealed Square Control Specifications:
- Standard Resistance Range Linear: 1 K ohms to 1 megohm
- Standard Resistance Range Audio: 1 K ohms to 1 megohm
- Total Resistance Tolerance Linear Tapers: ±10 % or ±20 %
- Total Resistance Tolerance Audio Tapers: ±10 % or ±20 %
- Independent Linearity: ±5 %
- Absolute Minimum Resistance: 2 ohms maximum
- Effective Electrical Angle: 270 ° ±5 °
- Contact Resistance Variation: 2 %
- Dielectric Withstanding Voltage Sea Level: 1,500 VAC minimum
- Dielectric Withstanding Voltage 70000: 500 VAC minimum
- Insulation Resistance: 1,000 megohms minimum
- Power Rating At 70 °C Linear Tapers: 0.5 watt
- Power Rating At 70 °C Audio Tapers: 0.25 watt
- Theoretical Resolution: Essentially infinite
- Operating Temperature Range: +1 °C to +125 °C
- Storage Temperature Range: -55 °C to +125 °C
- Temperature Coefficient Over Storage Temperature Range: ±1,000 ppm/°C
- Vibration Single Section: 15 G
- Total Resistance Shift Vibration: ±2 % maximum
- Voltage Ratio Shift Vibration: ±5 % maximum
- Shock Single Section: 30 G
- Total Resistance Shift Shock: +2 % maximum
- Voltage Ratio Shift Shock: ±5 % maximum
- Load Life Total Resistance Shift: ±10 % TRS maximum
- Load Life Rotational Life: 50,000 cycles
- Contact Resistance Variation 25000 Cycles: ±2 %
- Moisture Resistance Total Resistance Shift: ±10 % TRS
- IP Rating: IP 64
- Stop Strength: 56 N-cm (5 lb.-in.)
- Mechanical Angle: 290 ° ±5 °
- Starting Torque Dual Sections: +0.35 N-cm (+0.5 oz.-in.) maximum
- Running Torque Single Section: 0.15 to 1.4 N-cm (0.2 to 2.0 oz.-in.)
- Running Torque Dual Section: 0.35 to 1.8 N-cm (0.5 to 2.5 oz.-in.)
- Mounting Torque on Bushing: 1.7 to 2.0 N-m (15 to 18 lb.-in.) maximum
- Weight Single Section: 5.5 grams
- Weight Additional Section: 3.0 grams
- Terminals: PC pin or solder lug
