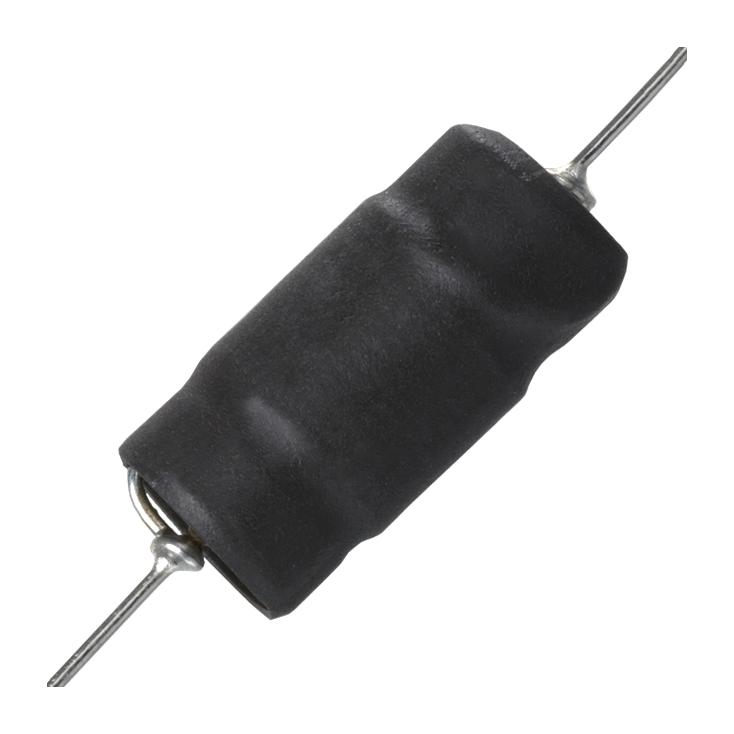

Bourns 5800331RC High Current Choke
The Bourns 5800 series power chokes are designed for high current applications requiring low DC resistance. These chokes utilize a ferrite bobbin core to provide high saturation current and low profile. They are suitable for DC-DC converters, power supplies, and other applications where efficient power management is critical. The VW-1 rated shrink tubing provides insulation and identification, while the dielectric strength of 2500 Vrms ensures reliable performance. RoHS compliant with a dash number marking for easy identification.
Bourns 5800331RC High Current Choke Specifications:
- Series: 5800
- Inductance: 330 µH
- Inductance_Tolerance: ±10%
- DCR: 0.770 Ω (Max.)
- Saturation_Current: 0.60 A
- Rated_Current: 0.40 A
- Operating_Temperature: -40 to +125 °C
- Dielectric_Strength: 2500 Vrms
- Test_Frequency: 1 KHz
- RoHS Compliant: Yes
- Core_Material: Ferrite Bobbin
Buy the 5800-331-RC BOURNS High Current Choke | myMectronic
Securely purchase the Bourns 5800-331-RC high-current choke and ensure reliable power management for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 5800331RC?
You can click on the BUY or RFQ button to purchase 5800331RC from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 5800331RC?
You can download the 5800331RC datasheet or visit the Bourns website for support.
Who is the manufacturer of 5800331RC?
Bourns
