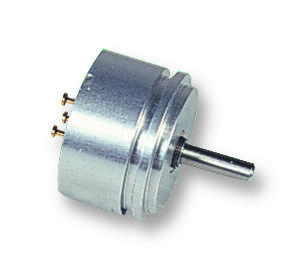

Bourns 6539S1102 Precision Potentiometer
The Bourns 6539S-1-102 is a precision potentiometer engineered for demanding applications requiring high accuracy and durability. Its key features include infinite resolution, excellent rotational life, and rugged construction. The potentiometer is suitable for general-purpose use and offers non-standard features upon request. It's designed to deliver consistent performance across a wide range of operating conditions, making it a reliable choice for industrial and commercial applications. The Bourns 6539S-1-102 is available with various mounting options and shaft configurations to meet specific design requirements.
Bourns 6539S1102 Precision Potentiometer Specifications:
- Standard Resistance Range: 1 K to 100 K ohms
- Total Resistance Tolerance: ±15 %
- Independent Linearity: ±2.0 %
- Effective Electrical Angle: 340 ° +3 °
- End Voltage: 0.5 % maximum
- Output Smoothness: 0.1 %
- Dielectric Withstanding Voltage: 750 VAC minimum
- Power Rating: 1.0 watt at +70 °C
- Insulation Resistance: 500 megohms minimum
- Resolution: Essentially infinite
- Operating Temperature Range: +1 °C to +125 °C
- Storage Temperature Range: -65 °C to +125 °C
- Temperature Coefficient: ±500 ppm/°C maximum
- Vibration: 15 G
- Wiper Bounce: 0.1 millisecond maximum
- Total Resistance Shift: ±10 %
- Voltage Ratio Shift: ±0.5 %
- Shock: 50 G
- Load Life: 1,000 hours, 1 watt
- Rotational Life: 10,000,000 shaft revolutions
- Moisture Resistance: ±15 %
- IP Rating: IP 40
- Mechanical Angle: Continuous, Stops available
- Stop Strength: 22.6 N-cm
- Torque: 0.40 N-cm max.
- Shaft Runout: 0.13 mm T.I.R.
- Lateral Runout: 0.08 mm T.I.R.
- Shaft End Play: 0.13 mm T.I.R.
- Shaft Radial Play: 0.13 mm T.I.R.
- Pilot Diameter Runout: 0.06 mm T.I.R.
- Backlash: 0.1 º maximum
- Weight: 18 gm (6539), 24 gm (6639)
- Terminals: Rear Turret Type
- Soldering Condition (Manual): 96.5Sn/3.0Ag/0.5Cu solid wire
- Soldering Condition (Wave): 96.5Sn/3.0Ag/0.5Cu solder
- Marking: Manufacturer’s name, part number, resistance value, linearity tolerance, wiring diagram, and date code
- Ganging: 1 cup maximum
- Hardware (6639 only): Lockwasher and mounting nut
Buy the 6539S-1-102 BOURNS Precision Potentiometer | myMectronic
Securely purchase the Bourns 6539S-1-102 potentiometer and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 6539S1102?
You can click on the BUY or RFQ button to purchase 6539S1102 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 6539S1102?
You can download the 6539S1102 datasheet or visit the Bourns website for support.
Who is the manufacturer of 6539S1102?
Bourns
