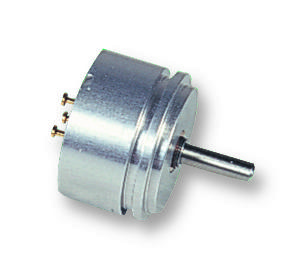

Bourns 6539S1502 Precision Potentiometer
The Bourns 6539S-1-502 precision potentiometer is a versatile component known for its high precision and durability. It boasts infinite resolution, ensuring accurate and consistent readings across its wide resistance range. Its rugged construction and excellent rotational life make it suitable for a variety of applications, including general-purpose uses and non-standard feature requirements. The potentiometer is designed for cost and space-saving integration, offering a reliable solution for precise control and measurement.
Bourns 6539S1502 Precision Potentiometer Specifications:
- Standard Resistance Range: 1 K to 100 K ohms
- Total Resistance Tolerance: ±15 %
- Independent Linearity: ±2.0 %
- Effective Electrical Angle: 340 ° +3 °
- End Voltage: 0.5 % maximum
- Output Smoothness: 0.1 %
- Dielectric Withstanding Voltage: 750 VAC minimum
- Power Rating: 1.0 watt at +70 °C
- Insulation Resistance: 500 megohms minimum
- Resolution: Essentially infinite
- Operating Temperature Range: +1 °C to +125 °C
- Storage Temperature Range: -65 °C to +125 °C
- Temperature Coefficient: ±500 ppm/°C maximum
- Vibration: 15 G
- Wiper Bounce: 0.1 millisecond maximum
- Total Resistance Shift: ±10 %
- Voltage Ratio Shift: ±0.5 %
- Shock: 50 G
- Load Life: 1,000 hours, 1 watt
- Rotational Life: 10,000,000 shaft revolutions
- Moisture Resistance: ±15 %
- IP Rating: IP 40
- Mechanical Angle: Continuous, Stops available
- Stop Strength: 22.6 N-cm (2 lb.-in.)
- Torque: 0.40 N-cm (0.5 oz.-in.) max.
- Shaft Runout: 0.13 mm (0.005 in.) T.I.R.
- Lateral Runout: 0.08 mm (0.003 in.) T.I.R.
- Shaft End Play: 0.13 mm (0.005 in.) T.I.R.
- Shaft Radial Play: 0.13 mm (0.005 in.) T.I.R.
- Pilot Diameter Runout: 0.06 mm (0.0025 in.) T.I.R.
- Backlash: 0.1 º maximum
- Weight: 18 gm (6539), 24 gm (6639)
- Soldering Condition (Manual): 96.5Sn/3.0Ag/0.5Cu solid wire
- Soldering Condition (Wave): 96.5Sn/3.0Ag/0.5Cu solder
- Marking: Manufacturer’s name, part number, resistance value, linearity tolerance, wiring diagram, and date code
