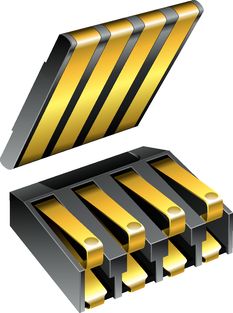

Bourns 70AAJ4M0G Modular Connector
The Bourns 70AA modular connector features a 2.54 mm pitch with high cycle life, RoHS compliance, and halogen-free materials suitable for surface-mount components. It includes twin hot contacts with symmetrical pads, guided for pick-and-place automation, and operates within -55°C to 125°C. Made from glass-reinforced thermoplastic with copper alloy contacts, it has a contact resistance of 25 mΩ, rated for 3 A and 60 V. Designed for reliable, high-performance electronic connection applications, it offers a durable, vibration, and shock-resistant structure for various industrial uses.
Bourns 70AAJ4M0G Modular Connector Specifications:
- Pitch: 2.54 mm
- Material: Glass reinforced thermoplastic insulator, copper alloy contacts
- Finish: Contact wipe AgT, underplating Ni, contact area Au over Ni
- Operating Temperature: -55°C to 125°C
- Contact Resistance: 25 mΩ max
- Current Rating: 3 A/contact
- Voltage Rating: 60 V
- Dielectric Voltage: AC 500 V
- Durability: 50,000 cycles min.
- Vibration resistance: 30 G, 10-2K Hz, 0.06 inches D.A.
- Shock resistance: 100 G
- Normal Force: Min. 80 grams
- Size: Multiple configurations with contact numbers 2 to 6
- Surface: RoHS compliant, halogen-free with <900 ppm Br/Cl content
Buy the Buy Bourns Modular Connector Part Number 70AAJ4M0G Online
Order the Bourns modular connector online today and experience high-quality, RoHS compliant surface-mount connection solutions. This connector features twin hot contacts, a 2.54 mm pitch, and operates efficiently across wide temperature ranges from -55°C to 125°C. Designed with a glass-reinforced thermoplastic insulator and copper alloy contacts, it has a contact resistance of only 25 mΩ, rated for 3 A and 60 V. Its durable construction withstands up to 50,000 cycles, making it ideal for industrial applications requiring reliable, long-lasting electrical connections with vibration and shock resistance.
Get Bourns 70AAJ4M0G today—built for reliable connectivity, high durability, and RoHS compliance in industrial electronics.
Frequently Asked Questions
Where can I buy Bourns 70AAJ4M0G?
You can click on the BUY or RFQ button to purchase 70AAJ4M0G from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 70AAJ4M0G?
You can download the 70AAJ4M0G datasheet or visit the Bourns website for support.
Who is the manufacturer of 70AAJ4M0G?
Bourns
