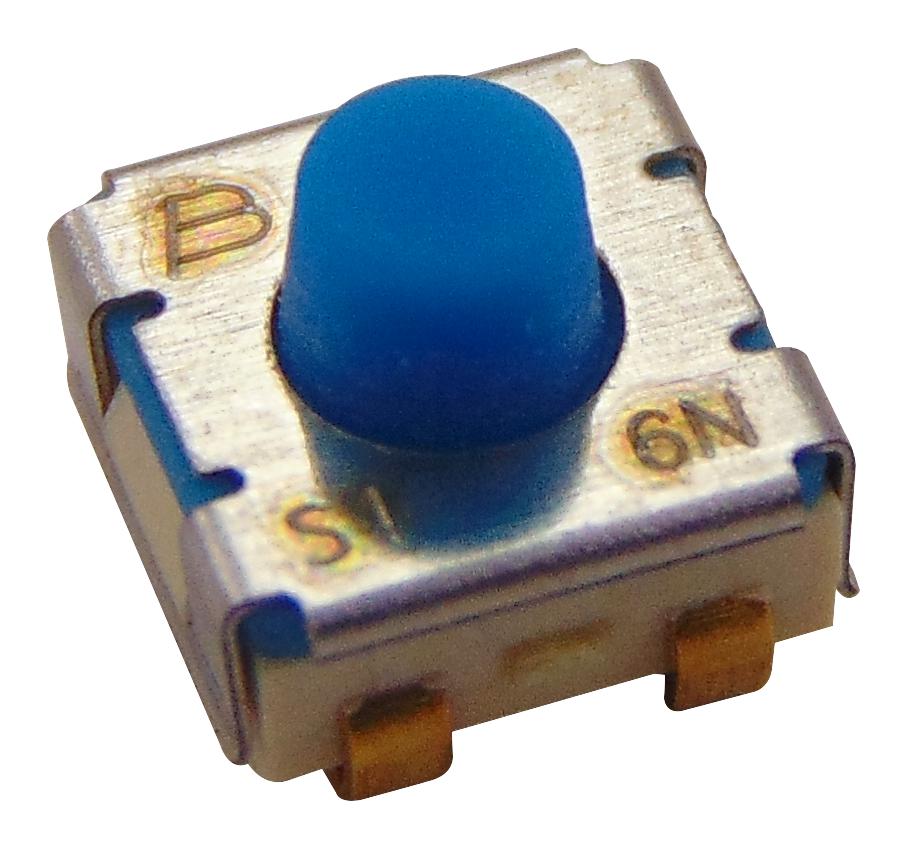

Bourns 7914J1000 Sealed Key Switch
This sealed key switch features a compact design suitable for surface mount and through-hole applications, with IP67 sealing for board washing compatibility. It has a maximum current of 100 mA and voltage of 16V, made with durable stainless steel and thermoplastic materials. The switch offers a mechanical actuation force of 300 ± 100g and a cycle life of 100,000 actuations. Ideal for industrial, automation, and control systems, it supports various mounting styles including J-hook, gull-wing, and right angle configurations, with RoHS compliance for environmental safety.
Bourns 7914J1000 Sealed Key Switch Specifications:
- Contact Rating: Max 100 mA at 16V
- Contact Resistance: Max 100 milliohms
- Insulation Resistance: Min 100 megohms
- Dielectric Strength: 250 VAC
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Vibration: 20G
- Shock: 100G
- Actuator Force: 300 ± 100g
- Mechanical Pushover Strength: 0.9 kg minimum
- Cycle Life: 100,000 actuations
- Sealed for board washing, IP67 rated
- Cover Material: Stainless steel
- Base Material: UL94V-0 thermoplastic
- Terminal Material: Copper alloy, gold plated
- Dome Material: Stainless steel, silver plated
- Actuator Material: High temperature silicon rubber
- Dimensions: 65mm button height, available in flush and other styles, with various packaging options including reel and tube
- Compliance: RoHS
Buy the Bourns Series Sealed Key Switch: 7914J1000
Purchase the Bourns Sealed Key Switch located at 7914J1000 today through our online store. This high-quality switch offers IP67 sealing, making it suitable for harsh industrial environments, automation, and control systems. With a durable stainless steel cover, UL94V-0 thermoplastic base, gold-plated copper terminals, and a cycle life of 100,000 actuations, this switch guarantees reliable operation. Its versatile mounting options, including J-hook, gull-wing, and right angle, ensure compatibility with various PCB layouts. Order now for fast delivery and trusted performance for your critical projects.
Order your Bourns Series Sealed Key Switch 7914J1000 today and give your projects the dependable quality they deserve, ensuring durability and performance in demanding environments.
Frequently Asked Questions
Where can I buy Bourns 7914J1000?
You can click on the BUY or RFQ button to purchase 7914J1000 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 7914J1000?
You can download the 7914J1000 datasheet or visit the Bourns website for support.
Who is the manufacturer of 7914J1000?
Bourns
