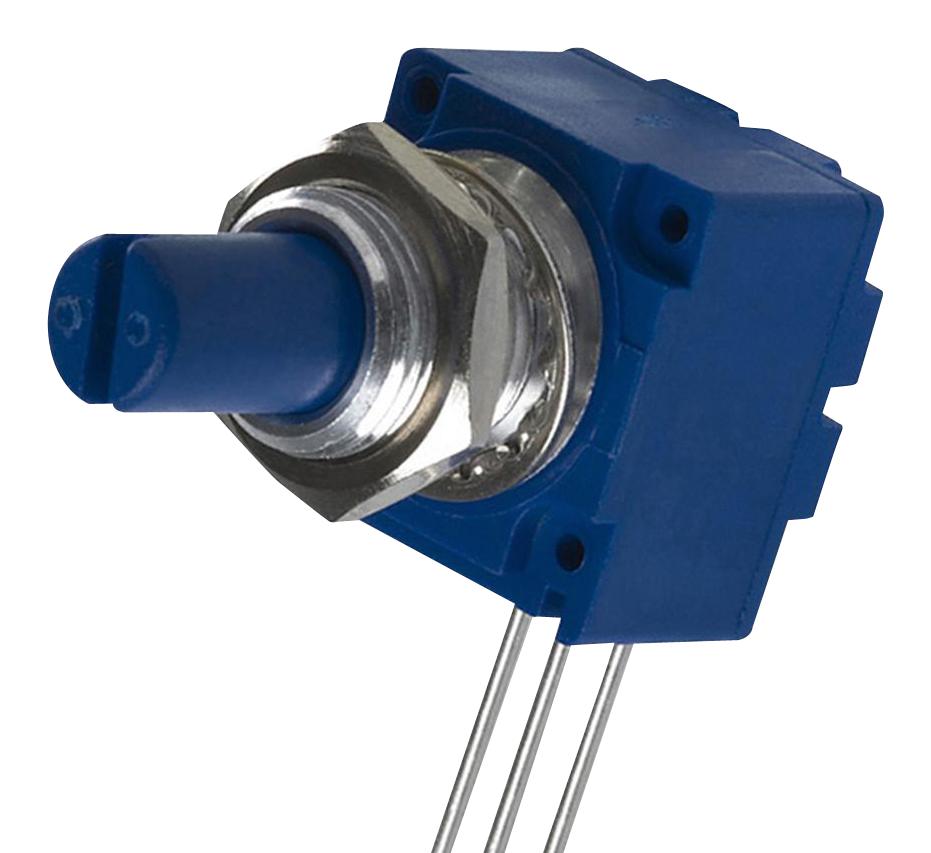

Bourns 91R1AR22D20L Precision Panel Potentiometer
The potentiometer model 91R1AR22D20L is a high-precision, single-turn panel control ideal for robust industrial and electronic applications. Featuring a 5/8-inch square metal or plastic shaft with various mounting options, it offers reliable resistance settings with linear and audio tapers. Built to withstand harsh environments, it operates within -40°C to +125°C, with a dielectric withstand voltage of 1,500 VAC at sea level. Its compact design and durable construction ensure dependable performance for automation, instrumentation, and control systems.
Bourns 91R1AR22D20L Precision Panel Potentiometer Specifications:
- Shaft Size: 5/8 inch square
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature Range: -55°C to +125°C
- Dielectric Withstanding Voltage: 1,500 VAC at sea level
- Resistance Range: 100 ohms to 1 megohm depending on taper and configuration
- Total Resistance Tolerance: 10% or 20%, or 5% or 10% depending on model
- Linear Taper Electrical Angle: 240° ± 5°
- Audio Taper Electrical Angle: 225° ± 5°
- Power Rating: 1 watt at +70°C for linear tapers
- Mechanical Angle: 100° with maximum torque of 0.21 to 1.06 N-cm
- Mounting: Panel or PCB mount with printed circuit terminals or solder lugs
- Environmental Conditions: Rated for operation in vibration of 15G and shock of 30G, with moisture resistance per MIL-STD-202
- IP Rating: IP 40
- Construction: Metal or plastic shaft options, RoHS compliant
Buy the Bourns 91R1AR22D20L – Reliable Precision Potentiometer for Industrial Applications
Order the Bourns 91R1AR22D20L high-quality single-turn potentiometer online today. Designed for industrial automation, it features a durable metal or plastic shaft, a compact 5/8-inch square size, and excellent resistance performance. Its wide operating temperature range from -40°C to +125°C ensures reliable operation in harsh environments. Built with RoHS compliance, this potentiometer offers high power rating and precision, making it suitable for instrumentation, control units, and automation systems. Ensure your projects have reliable, long-lasting components by purchasing online now.
Get Bourns 91R1AR22D20L today—built for durability, accuracy, and seamless integration into your control systems.
Frequently Asked Questions
Where can I buy Bourns 91R1AR22D20L?
You can click on the BUY or RFQ button to purchase 91R1AR22D20L from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 91R1AR22D20L?
You can download the 91R1AR22D20L datasheet or visit the Bourns website for support.
Who is the manufacturer of 91R1AR22D20L?
Bourns
