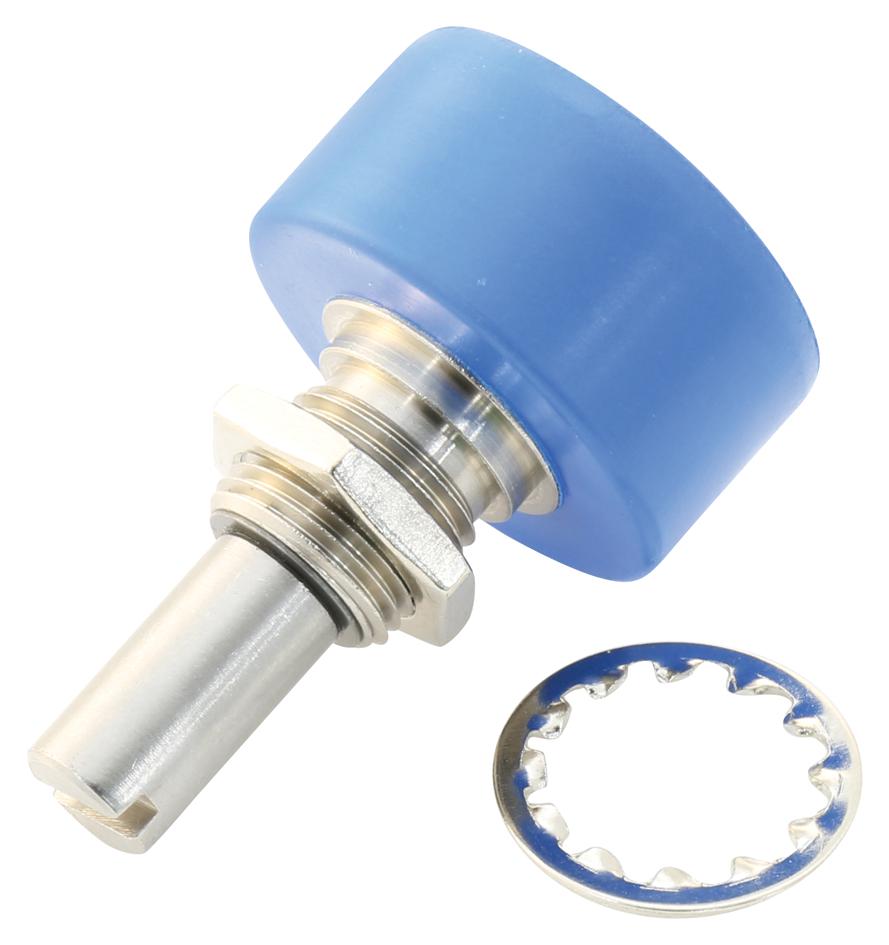

Bourns AMS22B5A1BHASL334N Rotary Position Sensor
The AMS22B series non-contacting analog rotary position sensor utilizes magnetic technology to provide precise feedback for applications such as pneumatic control valves, remote antenna positioning, tilt control systems, foot pedals, steering mechanisms, and lift-and-shuttle or suspension systems. It is highly resistant to vibration, shock, and ingress of fluids or dust, ensuring reliable performance in industrial environments. Factory-programmed for zero position, this robust sensor offers high repeatability and durability. It features a PFA twin twisted 7/0.2mm cable and is color-coded according to IEC 584 standards. Designed for sensing, motor control, medical devices, robotics, communication, automation, and industrial use.
Bourns AMS22B5A1BHASL334N Rotary Position Sensor Specifications:
- Supply Voltage: 5V ±10%
- Supply Current: 2 mA (low speed), 20 mA (high speed)
- Output Signal: Analog, Voltage Output 1 to 99% VDD
- Electrical Angle: Programmable 10° to 360°, independent linearity 40.5%
- Effective Electrical Angle: > 340°
- Hysteresis: 0.2% VDD max.
- Overvoltage Protection: +20 VDC
- Reverse Voltage Protection: -10 VDC
- Operating Temperature: -40°C to +125°C
- Insulation Resistance: 500 MΩ min @ 500 V
- Shaft Material: Stainless steel
- Rotational Life: 50 million shaft revolutions
- Mounting Torque: 170-200 N·cm
- IP Rating: IP50
- Vibration: 15 g
- Soldering Conditions: Manual and wave soldering compatible with RoHS compliance
Buy the BOURNS AMS22B – Reliable Rotary Position Sensor for Industrial Applications
Order the BOURNS AMS22B rotary position sensor online today to experience its high reliability and precision in industrial environments. Designed with magnetic technology, it offers accurate feedback for applications like motor control, tilt systems, and remote positioning. Its resistance to vibration, shock, and ingress makes it ideal for harsh conditions. Factory-programmed for zero position and featuring a PFA cable, this sensor is suitable for automation, robotics, medical devices, and communication systems. Enhance your projects with a durable and precise measurement solution—purchase online now!
Get BOURNS AMS22B today—built for precision, high durability, and resistance to vibration and dust for industrial automation and instrumentation needs.
Frequently Asked Questions
Where can I buy Bourns AMS22B5A1BHASL334N?
You can click on the BUY or RFQ button to purchase AMS22B5A1BHASL334N from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part AMS22B5A1BHASL334N?
You can download the AMS22B5A1BHASL334N datasheet or visit the Bourns website for support.
Who is the manufacturer of AMS22B5A1BHASL334N?
Bourns
