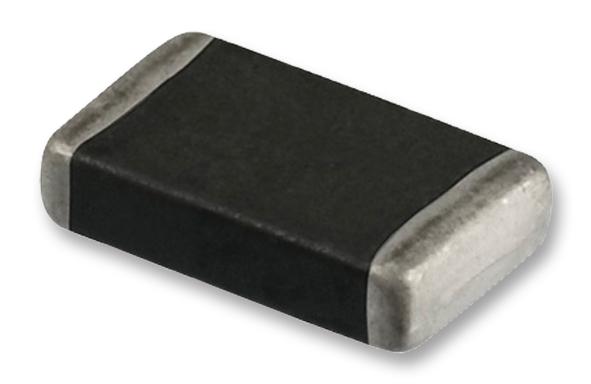

Bourns AV20K2220122NIR1HT Automotive High Temperature Varistor
The AVHT Series high-temperature automotive varistors provide reliable transient suppression for automotive electronic systems, operating effectively from -55°C to 150°C. Available in five sizes—0805, 1206, 1210, 1812, and 2220—with supply voltages of 12 V, 24 V, and 42 V, these RoHS-compliant varistors handle significant energy levels, including load dump energies up to 50 J. They feature low clamping voltage, non-sensitive to mildly activated fluxes, and are suitable for high-temperature environments, ensuring durability and circuit protection from voltage surges in demanding automotive applications.
Bourns AV20K2220122NIR1HT Automotive High Temperature Varistor Specifications:
- Sizes: 0805, 1206, 1210, 1812, 2220
- Supply Voltages: 12 V, 24 V, 42 V
- Maximum Continuous Operating Temperature: 150°C
- Energy Handling: Load Dump up to 50 J upon request
- Clamping Voltage: Low Ve
- RoHS Compliant
- Operating Temperature Range: -55°C to +150°C
- Response Time: <2 ns
- Peak Surge Current: 30 A (model-dependent)
- Transient Energy: Up to 50 J (upon request)
- Maximum Peak Voltage: 420 to 2000 V (Jump Start Capability)
- Climatic Category: 55/150/56
Buy the Bourns Series AVHT Automotive Varistor: AV20K2220122NIR1HT
Secure your automotive electronic systems with Bourns AVHT Series high-temperature varistors. Designed to operate reliably from -55°C to 150°C, they handle surge energies up to 50 J, ensuring circuit protection against voltage transients such as load dumps and jump-start surges. These RoHS-compliant devices are available in five sizes—0805, 1206, 1210, 1812, and 2220—with voltages up to 42 V. Easy to install, they feature low clamping voltage, fast response times under 2 ns, and robust construction suitable for demanding automotive environments. Purchase online now for dependable surge suppression that increases safety and system longevity.
Get Bourns AV20K2220122NIR1HT today—built for high temperature durability and surge protection in automotive electronics.
Frequently Asked Questions
Where can I buy Bourns AV20K2220122NIR1HT?
You can click on the BUY or RFQ button to purchase AV20K2220122NIR1HT from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part AV20K2220122NIR1HT?
You can download the AV20K2220122NIR1HT datasheet or visit the Bourns website for support.
Who is the manufacturer of AV20K2220122NIR1HT?
Bourns
