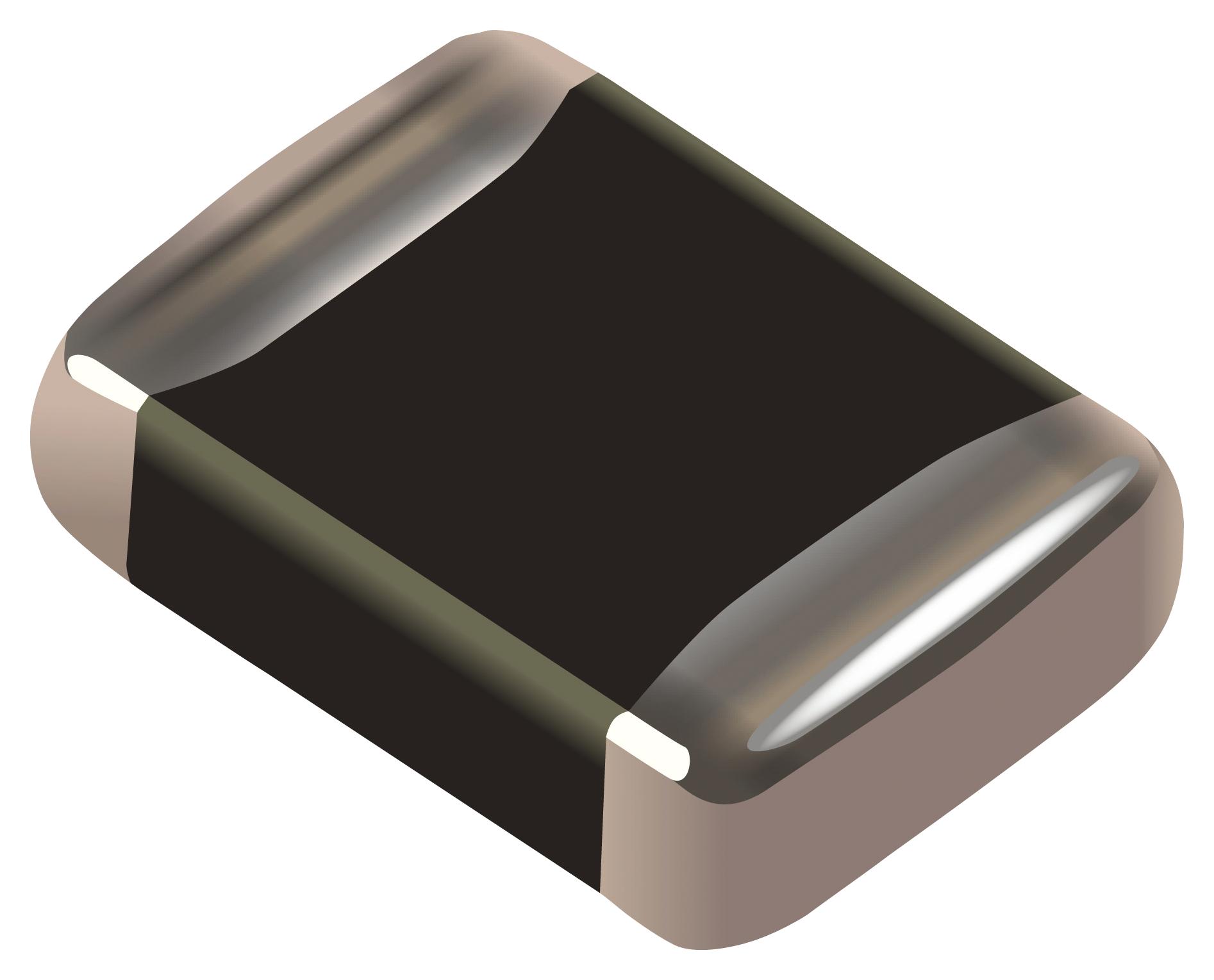

Bourns AV30K1210401NIR1 Automotive Varistor
The AV series automotive-grade multilayered varistors offer reliable transient suppression for electronic systems in vehicles. Designed for robust performance from -55°C to +125°C, these varistors handle high energy and current surges with low clamping voltage, making them ideal for sensitive automotive applications like anti-lock brakes, airbag controls, and ignition systems. Featuring NiSn barrier end terminations suitable for both Pb and Pb-free soldering, they ensure environmentally friendly, durable, and space-efficient transient suppression solutions. Available in multiple sizes with high surge current ratings up to 1200A and load dump energy up to 50J upon request, these varistors comply with RoHS standards and meet strict automotive reliability criteria.
Bourns AV30K1210401NIR1 Automotive Varistor Specifications:
- Maximum Continuous Working Voltage: 16 to 56 V
- Peak Single Pulse Surge Current: 8/20 μs waveform up to 1200A
- Load Dump Energy: up to 50 Joules (upon request)
- Operating Ambient Temperature: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Response Time: <2 ns
- Clamping Voltage: Low clamping voltage (Ve)
- Controller Type: Multilayered ceramic varistor
- Sizes Available: 0805, 1206, 1210, 1812, 2220
- Compliance: RoHS, AEC-Q200 Grade 1 (upon request)
- Solder Terminations: NiSn barrier type, suitable for Pb and Pb-free reflow soldering
- Environmental Resistance: Non-sensitive to mildly activated fluxes
- Reliability Testing: Meets IEC 1051-1, CECC 42200, AEC-Q200 standards
- Dimensions vary by size, e.g., 1206: 3.2mm x 1.6mm, 2220: 5.59mm x 6.35mm
- Encapsulation: Non-plastic coating for better flammability rating
Buy the Buy Bourns AV Series Automotive Grade Varistors Part Number AV30K1210401NIR1 Online
Secure your vehicle's electronic systems with Bourns automotive-grade varistors. Designed to handle high energy surges, they operate reliably from -55°C to +125°C. These varistors feature NiSn barrier end terminations for both Pb and Pb-free soldering, ensuring environmentally friendly, space-saving protection. Ideal for applications like airbag systems, ignition controls, and anti-lock braking systems, they offer low clamping voltage and high surge current ratings, meeting stringent automotive standards for durability and safety. Order now online for fast delivery and enhanced circuit protection.
Buy Bourns AV30K1210401NIR1 automotive-grade varistors now and experience unmatched reliability and high energy transient suppression for vehicle electronics.
Frequently Asked Questions
Where can I buy Bourns AV30K1210401NIR1?
You can click on the BUY or RFQ button to purchase AV30K1210401NIR1 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part AV30K1210401NIR1?
You can download the AV30K1210401NIR1 datasheet or visit the Bourns website for support.
Who is the manufacturer of AV30K1210401NIR1?
Bourns
