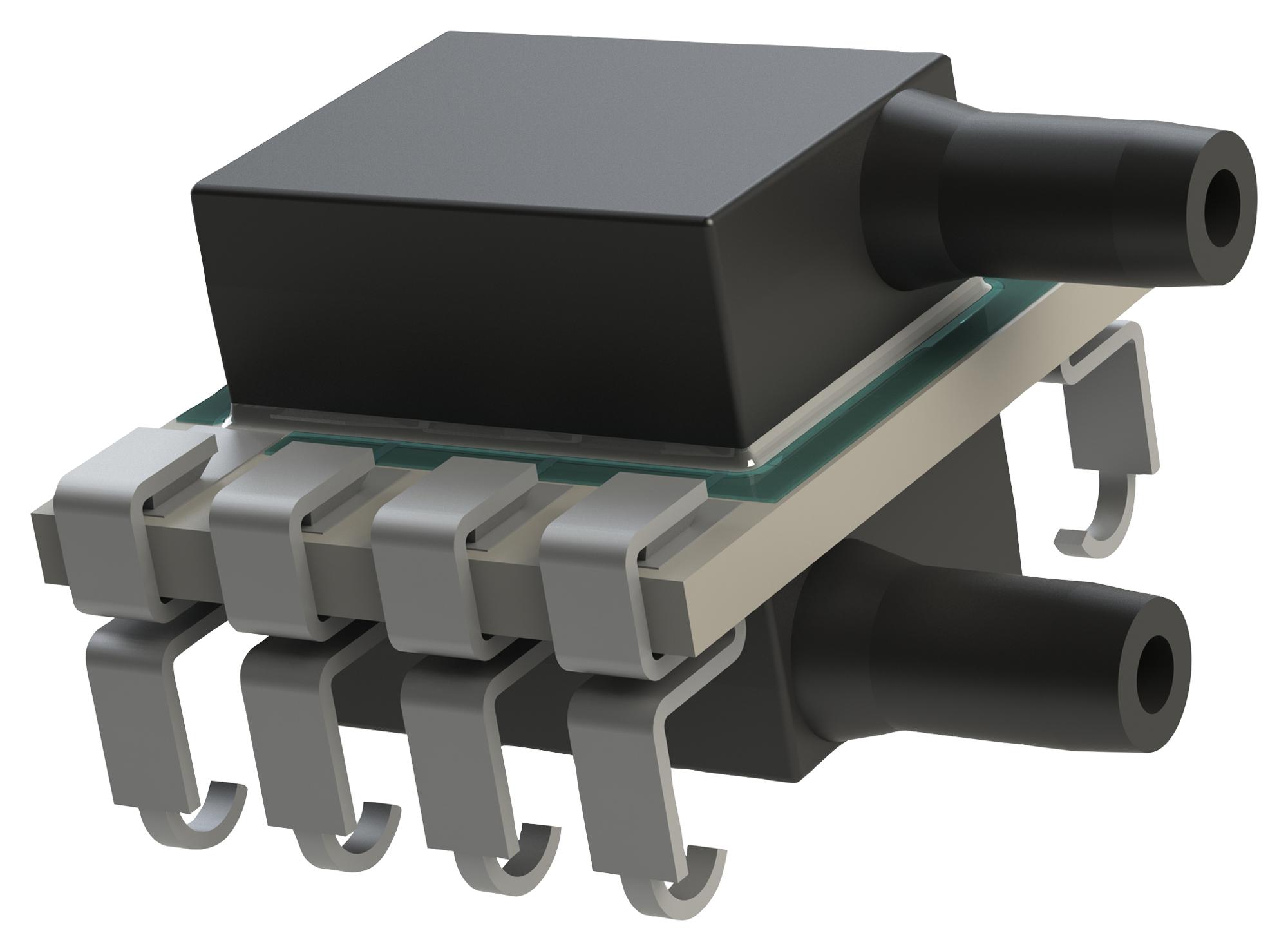

Bourns BPS120AG01P02DG Low Pressure Sensor
Bourns® Precision Sensor pressure sensors are designed for demanding applications across industrial, medical, and consumer markets. They offer digital and analog output options, ultra-low sensing ranges from 0.15 PSI to 1.0 PSI, and provide high sensitivity, stability, and accuracy with a total error band of 1.5% FS over 0°C to +60°C. These sensors feature lifetime drift of about 0.5% FS, active temperature compensation, and are compatible with non-corrosive dry gases. Available in gage and differential configurations, they are ideal for process monitoring, medical diagnostics, HVAC systems, packaging automation, analysis, and instrumentation, supporting RoHS compliance and moisture level classification.
Bourns BPS120AG01P02DG Low Pressure Sensor Specifications:
- Supply Voltage: 2.7 V min, 5 V typical, 5.5 V max
- Supply Current @ 5 V: 1.2 mA min, 2 mA typical, 3.5 mA max
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +100°C
- Pressure Range: 0.15 to 1.0 PSI (10.3 to 68.9 mbar, 1.03 to 6.89 KPa, 4.2 to 27.7 in H₂O)
- Output: Digital 2c
- ADC Resolution: 13 bit
- Accuracy at 25°C: ±0.25% FS
- Total Error Band (0°C to 60°C): ≤1.5% FS
- Long Term Stability: ≤0.5% FS
- Response Time: 15 ms max
- Digital Update Time: 2 ms min, 5 ms typical
- Proof Pressure: 5× full scale pressure
- Burst Pressure: 10 psi
- Media Compatibility: Non-corrosive dry gases
- Moisture Sensitivity Level: 1
- ESD Protection: 2 kV HBM
- Dimensions: 12 mm diameter, compact lightweight design
- Packaging: 250 pieces per reel, RoHS compliant
Buy the Bourns BPS120 U–2013 – Reliable Pressure Sensor for Industrial Applications
Order the Bourns BPS120 low pressure sensor online today and ensure your systems operate with precise measurement and long-term reliability. Perfect for process monitoring, medical diagnostics, HVAC, packaging automation, and analysis, this sensor offers digital I2C output, ultra-low sensing range from 0.15 to 1.0 PSI, and exceptional stability with a total error band of only 1.5%. Its compact design, active temperature compensation, and RoHS compliance make it ideal for various stringent applications. Purchase now for rapid delivery and superior performance in demanding environments.
Buy Bourns BPS120 pressure sensor now and experience unmatched stability, accuracy, and durability for your industrial, medical, or automation projects.
Frequently Asked Questions
Where can I buy Bourns BPS120AG01P02DG?
You can click on the BUY or RFQ button to purchase BPS120AG01P02DG from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part BPS120AG01P02DG?
You can download the BPS120AG01P02DG datasheet or visit the Bourns website for support.
Who is the manufacturer of BPS120AG01P02DG?
Bourns
