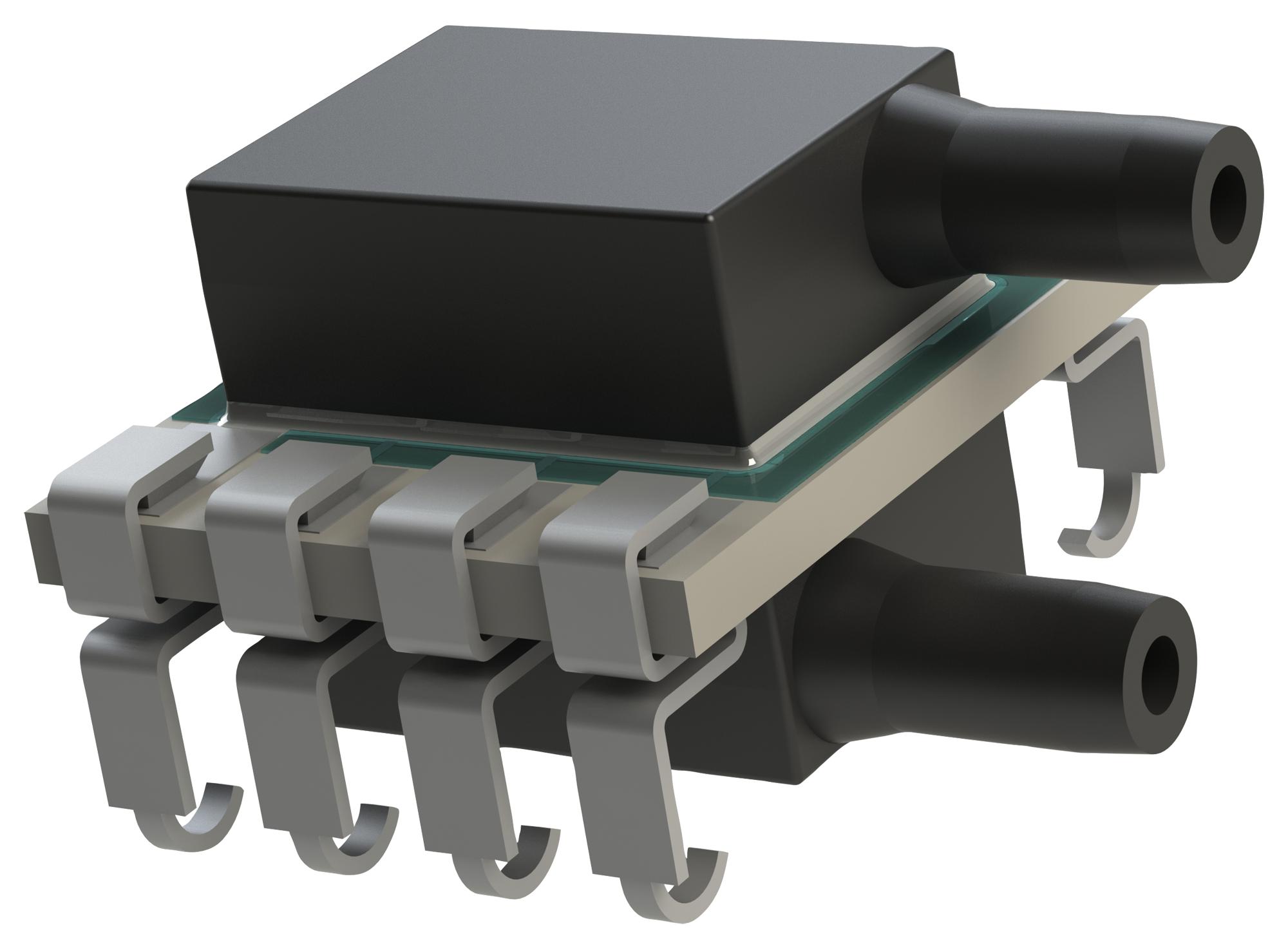

Bourns BPS120AG0P152DG Digital Pressure Sensor
The Bourns BPS120 Series is a 12 mm digital low pressure sensor designed for use in clean, dry air and non-corrosive gases. It features compensated digital output, ultra-low pressure sensing, and stable performance with a 13-bit ADC resolution, providing accurate readings over a pressure range of 0.15 to 1.0 psi. Suitable for HVAC, process monitoring, and medical diagnostic equipment, this RoHS-compliant sensor offers quick response times, long-term stability, and optional configurations for customized applications.
Bourns BPS120AG0P152DG Digital Pressure Sensor Specifications:
- Supply Voltage: 2.7 V to 5.5 V (typical 5 V)
- Supply Current: 1.2 mA to 3.5 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +100°C
- Pressure Range: 0.15 to 1.0 psi (10.3 to 68.9 mbar)
- Output: Digital 2C (1)
- ADC Resolution: 13 bit
- Accuracy @ 25°C: 40.25 % FS
- Total Error Band: £15 % FS over 0°C to 60°C
- Long Term Stability: £0.5 % FS
- Response Time: 15 ms maximum
- Digital Update Rate: 8.5 ms typical
- Proof Pressure: 5X full scale pressure
- Burst Pressure: 10 psi
- Media Compatibility: Non-corrosive dry gases
- RoHS compliant*, moisture Sensitivity Level 1, ESD Classification: 2kV
- Standard Packaging: 250 pcs/reel
- Weight: 1.307 grams
Buy the Buy Bourns BPS120 Series Digital Low Pressure Sensor Part Number BPS120AG0P152DG Online
Discover the high-precision Bourns BPS120 digital pressure sensor designed for HVAC, industrial, and medical applications. With ultra-low pressure sensing, compensated digital output, and quick response times, it ensures reliable performance in dry, non-corrosive environments. The sensor features a 13-bit ADC resolution, excellent stability, and extensive temperature range from -40°C to +85°C. Compact and RoHS compliant, it is ideal for demanding process monitoring, diagnostic equipment, and automation systems, providing accurate and stable pressure readings for various professional applications.
Order your Bourns BPS120 Series pressure sensor today and improve your air and gas monitoring projects with reliable, high-accuracy pressure measurement.
Frequently Asked Questions
Where can I buy Bourns BPS120AG0P152DG?
You can click on the BUY or RFQ button to purchase BPS120AG0P152DG from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part BPS120AG0P152DG?
You can download the BPS120AG0P152DG datasheet or visit the Bourns website for support.
Who is the manufacturer of BPS120AG0P152DG?
Bourns
