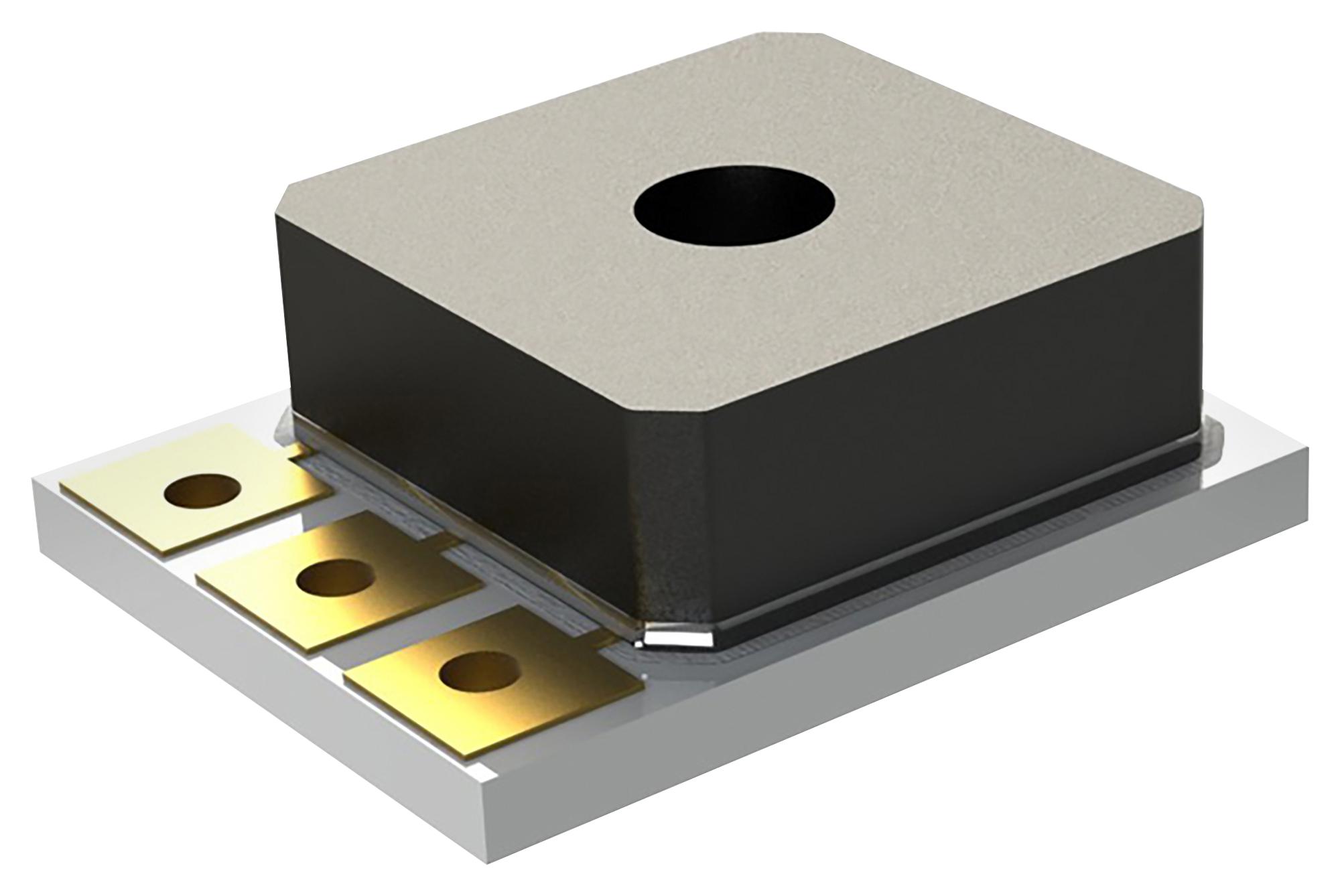

Bourns BPS130HA030P1MG High Pressure Sensor
Bourns® Precision Sensor BPS130 Series pressure sensors are designed for demanding industrial, medical, and transportation applications. Featuring compensated analog output, high-pressure sensing from 15 PSI to 500 PSI, and stable performance with a total error band of 2.5% over -40°C to 150°C, these sensors offer excellent sensitivity and durability. They are compatible with harsh media including air, liquids, and gases, and include isolated onboard electronics. Options include absolute or gauge pressure measurement and a gold-plated Kovar™ port, ideal for reliable, precise pressure monitoring.
Bourns BPS130HA030P1MG High Pressure Sensor Specifications:
- Pressure Range: 15 PSI to 500 PSI
- Media Compatibility: Harsh air, liquids, and gases
- Operating Temperature: -40°C to 150°C
- Storage Temperature: -85°C to 150°C
- Total Error Band: 2.5% of full scale
- Lifetime Drift: 0.5% of full scale
- Supply Voltage: 4.75 V to 5.25 V
- Supply Current: 2.5 mA
- Output Voltage Range: 0.02 % FS to 40.25 % FS
- Isolation: Yes (isolated onboard electronics)
- Port Options: Gold-plated Kovar™ port
- Media Compatibility: Silicon, glass, AuSn, ceramic
- Certifications: RoHS compliant
- Shock & Vibration: Resilient to industrial shocks and vibrations
- Size: Compact 10 mm diameter sensor
- Configuration Options: Absolute or Gauge pressure
- Packaging: Tape and reel for automated mounting
Buy the Bourns Series BPS130 Pressure Sensor: BPS130HA030P1MG
Order the Bourns BPS130HA030P1MG high-pressure sensor online today and experience reliable, precise, and durable pressure monitoring for industrial, medical, and heavy equipment applications. Featuring compensated analog output, wide temperature range, and options for absolute or gauge pressure, this sensor ensures stability and accuracy in harsh environments. Its compact design and RoHS compliance make it ideal for integration into complex systems, providing long-lasting performance and confidence in your measurements. Purchase now to upgrade your pressure sensing solutions with Bourns industry-leading technology.
Get Bourns BPS130HA030P1MG precision pressure sensor today—built for demanding industrial, medical, and transportation pressure monitoring needs.
Frequently Asked Questions
Where can I buy Bourns BPS130HA030P1MG?
You can click on the BUY or RFQ button to purchase BPS130HA030P1MG from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part BPS130HA030P1MG?
You can download the BPS130HA030P1MG datasheet or visit the Bourns website for support.
Who is the manufacturer of BPS130HA030P1MG?
Bourns
