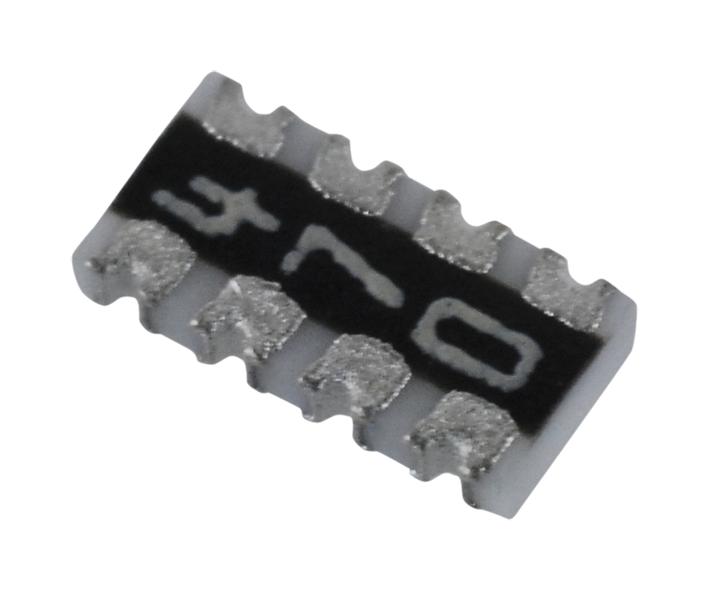

Bourns CAT10470J4LF Chip Resistor Array
The Bourns CAT10-470J4LF is a compact chip resistor array designed for a variety of electronic applications. This array features four isolated resistors within a small 0804 footprint, making it suitable for space-constrained designs. The components are RoHS compliant and packaged on a plastic reel for automated assembly processes. With a resistance range from 10 ohms to 1 megohm and a ±5% tolerance, the CAT10-470J4LF provides reliable resistance in diverse circuits. Its concave termination style and paper tape packaging enhance its versatility and ease of integration.
Bourns CAT10470J4LF Chip Resistor Array Specifications:
- Number of Elements: 4 (isolated)
- Power Rating per Resistor @ 70 °C: 0.0625 W
- Package Power Rating @ 70 °C: 0.250 W
- Operating Temperature Range: -55 °C to +125 °C
- Max. Working Voltage: 25 V
- Max. Overload Voltage: 50 V
- Resistance Tolerance: ±5 %
- Resistance Range/E24 Series: 10 ohms to 1 megohm
- T.C.R.: ±250 ppm/°C
- Packaging: 10,000 pieces per reel
- Resistance Code: First two digits are significant, third digit represents number of zeros
- Terminations: Tin-plated (RoHS compliant)
