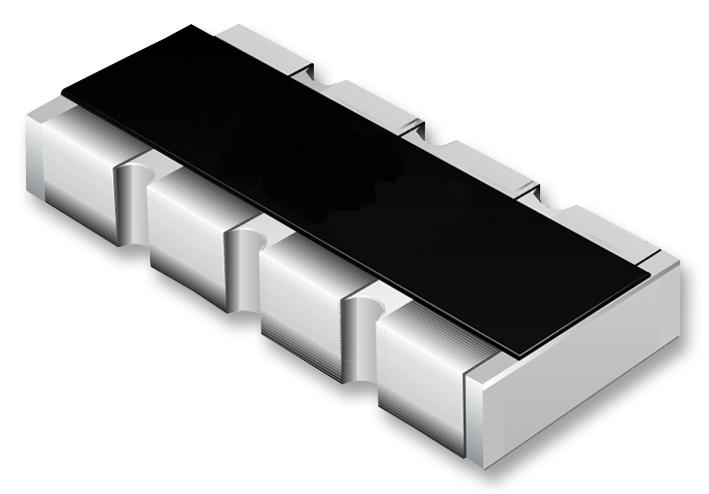

Bourns CAT161001F4LF Chip Resistor Array
The Bourns CAT16 series chip resistor arrays are designed for applications requiring multiple isolated resistors in a small footprint. These arrays offer flexibility with available element counts (2, 4, or 8) and resistance tolerance options (±1% and ±5%). They are RoHS compliant and suitable for a wide range of electronic devices, including power management circuits, signal conditioning, and more. The CAT16-1001F4LF specifically provides a reliable and compact solution for resistor array needs.
Bourns CAT161001F4LF Chip Resistor Array Specifications:
- Short Time Overload: ±2 % +0.1 ohm
- SolderingHeat: ±2 % +0.1 ohm
- Temperature Cycling: ±1 % + 0.1 ohm
- Moisture Load Life: ±3 % +0.1 ohm
- Load Life: ±3 % +0.1 ohm
- Number of Elements: 2 (J2), 4 (F4, J4), 8 (F8, J8)
- Power Rating Per Resistor @ 70 °C: 0.0625 W
- Package Power Rating @ 70 °C: 0.250 W (0.125 W for J2)
- Temperature Coefficient of Resistance: ±200 PPM/°C
- Resistance Tolerance: ±1 %, ±5 %
- Resistance Range: 10 ohms - 1 megohm
- Max. Working Voltage: 50 V (25 V for CAY16-J8)
- Max. Overload Voltage: 100 V (50 V for CAY16-J8)
- Operating Temp. Range: -55 °C - 125 °C
Buy the CAT16-1001F4LF BOURNS Chip Resistor Array | myMectronic
Securely purchase the Bourns CAT16-1001F4LF chip resistor array online for your electronic projects.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CAT161001F4LF?
You can click on the BUY or RFQ button to purchase CAT161001F4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAT161001F4LF?
You can download the CAT161001F4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAT161001F4LF?
Bourns
