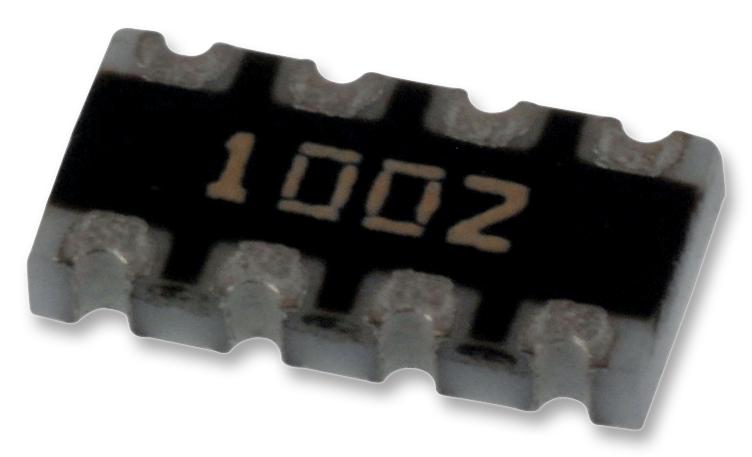

Bourns CAT161002F4LF Chip Resistor Array
The Bourns CAT16-1002F4LF is a chip resistor array designed for various electronic applications. This array offers multiple isolated resistor elements with resistance ranging from 10 ohms to 1 megohm. It features concave terminations, ensuring reliable connections, and is RoHS compliant, meeting environmental standards. The device is suitable for applications requiring precise resistance values and stable performance across a wide temperature range, commonly found in power management, signal conditioning, and sensor circuits.
Bourns CAT161002F4LF Chip Resistor Array Specifications:
- Short Time Overload: ±2 % +0.1 ohm
- SolderingHeat: ±2 % +0.1 ohm
- Temperature Cycling: ±1 % + 0.1 ohm
- Moisture Load Life: ±3 % +0.1 ohm
- Load Life: ±3 % +0.1 ohm
- Number of Elements: 2 (J2), 4 (F4, J4), 8 (F8, J8)
- Power Rating Per Resistor @ 70 °C: 0.0625 W
- Package Power Rating @ 70 °C: 0.250 W (0.125 W for J2)
- Temperature Coefficient of Resistance: ±200 PPM/°C
- Resistance Tolerance: ±1 %, ±5 %
- Resistance Range: 10 ohms - 1 megohm
- Max. Working Voltage: 50 V (25 V for CAY16-J8)
- Max. Overload Voltage: 100 V (50 V for CAY16-J8)
- Operating Temp. Range: -55 °C - 125 °C
Buy the CAT16-1002F4LF BOURNS Chip Resistor Array | myMectronic
Purchase the Bourns CAT16-1002F4LF Chip Resistor Array securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CAT161002F4LF?
You can click on the BUY or RFQ button to purchase CAT161002F4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAT161002F4LF?
You can download the CAT161002F4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAT161002F4LF?
Bourns
