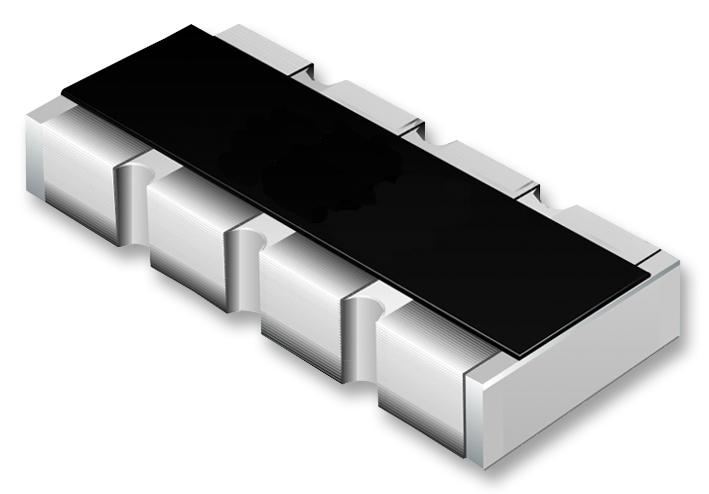

Bourns CAT16270J4LF Chip Resistor Array
The CAT16270J4LF is a chip resistor array designed for precise, high-density applications with RoHS compliance. Featuring convex and concave terminals, it offers resistance values from 10 ohms to 1 megohm with a tolerance of +1% to +5%. The device supports a power rating of 62 mW per resistor, with configurations available in 2, 4, or 8 elements, suitable for specialized electronic circuits. It operates across temperatures from -55°C to +125°C, ensuring reliability in demanding environments. The array’s compact size and high performance make it ideal for modern circuit design.
Bourns CAT16270J4LF Chip Resistor Array Specifications:
- Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: +1% to +5%
- Power Rating: 62 mW per resistor (31 mW for certain configurations)
- Operating Temperature Range: -55°C to +125°C
- Configuration: 2, 4, 8 elements
- Terminations: Convex and concave, RoHS compliant tin-plated
- Max. Working Voltage: 50 V (25 V for some models)
- Resistance Coefficient of Resistance: +200 PPM/°C
- Resistance Code: E24, E96
- Soldering Profile: Peak at 260°C with specific ramp times
- Package Sizes: 1206, 0603, 1506, and other standard chip resistor sizes
- Suitable for high-density surface-mount applications
Buy the Buy Bourns Chip Resistor Array Part Number CAT16270J4LF Online
Order the Bourns CAT16270J4LF chip resistor array online today and enjoy fast delivery. Ideal for precise, high-density applications, this RoHS-compliant resistor array offers resistance from 10 ohms to 1 megohm, ensuring excellent performance across -55°C to +125°C temperatures. With configurations of 2, 4, or 8 elements, it’s perfect for compact electronic designs requiring reliable resistor arrays with tight resistance tolerances of +1% to +5%. Upgrade your circuit assemblies with this durable, high-quality resistor array today.
Buy Bourns CAT16270J4LF chip resistor array now and experience unmatched reliability and performance in your high-density electronic circuits.
Frequently Asked Questions
Where can I buy Bourns CAT16270J4LF?
You can click on the BUY or RFQ button to purchase CAT16270J4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAT16270J4LF?
You can download the CAT16270J4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAT16270J4LF?
Bourns
