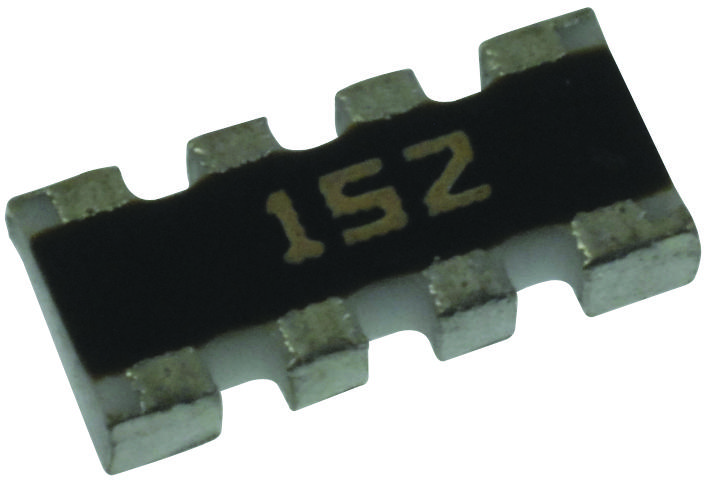

Bourns CAY162201F4LF Chip Resistor Array
The Bourns CAY16 series are chip resistor arrays with convex terminals, offering resistance values from 10 ohms to 1 megaohm. These arrays are available in various case sizes including 0606, 1206, 1506, and 2406, and feature 2, 4, or 8 isolated resistors to help reduce PCB space. Rated at 50V for most models and 25V for the J8, they have a power rating of 0.0625W at 70°C per resistor. Tolerance options include ±1% and ±5%, with a temperature coefficient of ±200 ppm/°C, operating efficiently within -55°C to 125°C.
Bourns CAY162201F4LF Chip Resistor Array Specifications:
- Resistance Range: 10 ohms to 1 megaohm
- Resistance Tolerance: ±1%, ±5%
- Temperature Coefficient of Resistance: ±200 PPM/°C
- Rated Voltage: 50V (except CAY16-J8 rated at 25V)
- Power Rating per Resistor: 0.0625W (at 70°C)
- Package Power Rating: 0.250W at 70°C
- Operating Temperature Range: -55°C to 125°C
- Case Sizes: 0606, 1206, 1506, 2406
- RoHS Compliant: Yes
- Resistor Array Configurations: 2, 4, 8 elements
- Termination: Tin-plated (RoHS compliant)
Buy the Bourns Series CAY16 Chip Resistor Array: CAY162201F4LF
Purchase the Bourns Series CAY16 chip resistor array online today for high-quality, space-efficient resistor solutions. These arrays feature multiple isolated resistors in various case sizes, offering resistance from 10 ohms to 1 megaohm, with tolerances of ±1% or ±5%, and a temperature coefficient of ±200 ppm/°C. Designed for a wide operating temperature range of -55°C to 125°C, they are RoHS compliant and perfect for space-constrained electronic projects requiring reliable performance and easy integration.
Order your Bourns Series CAY16 resistor array today and optimize space with reliable, compact resistor solutions for your PCB designs.
Frequently Asked Questions
Where can I buy Bourns CAY162201F4LF?
You can click on the BUY or RFQ button to purchase CAY162201F4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAY162201F4LF?
You can download the CAY162201F4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAY162201F4LF?
Bourns
