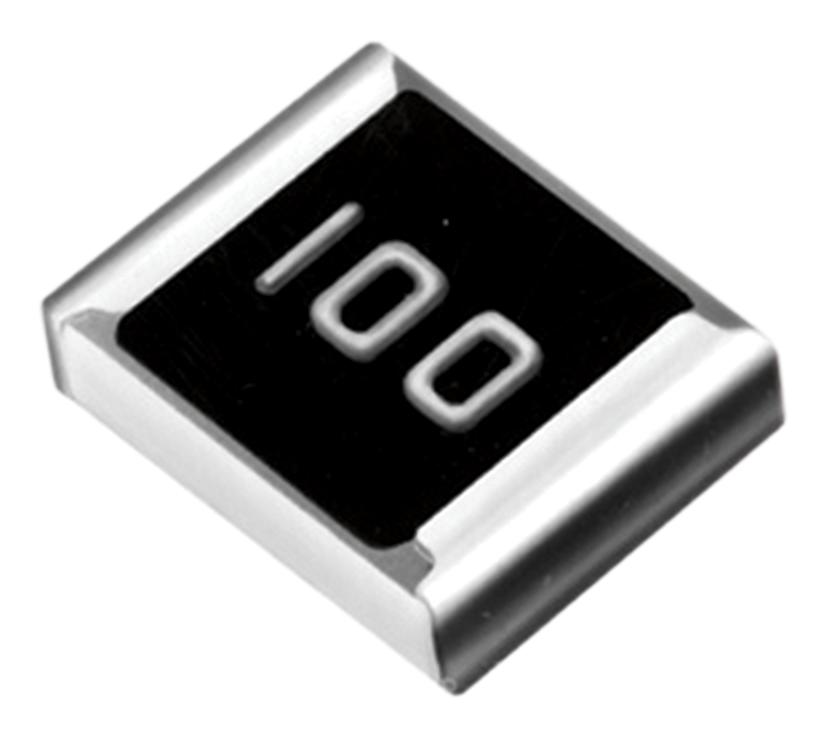

Bourns CHV1206FX1005ELF High Voltage Chip Resistor
The CHV series from Bourns features high-voltage, thick film chip resistors ideal for applications demanding high resistance, such as consumer electronics and high-voltage circuits. These resistors provide resistance values from 100 kΩ to 100 MΩ in E24 and E96 series with 1% and 5% tolerance. They support maximum voltages up to 3 kV and power ratings up to 1 W at 70°C. Operating from -55°C to +155°C, they are RoHS compliant, UL listed, and meet UL/IEC safety standards, ensuring reliable performance in demanding environments.
Bourns CHV1206FX1005ELF High Voltage Chip Resistor Specifications:
- Resistance Range: 100 kΩ to 100 MΩ
- Power Rating: up to 1 W at 70°C
- Maximum Operating Voltage: 3,000 V
- Operating Temperature Range: -55°C to +155°C
- Tolerance: 1% (E96 series), 5%
- Temperature Coefficient: ±100 ppm/°C (1%), ±200 ppm/°C (5%)
- RoHS Compliant
- UL Listed: UL1676, File Number: E466353
- Supported Standards: UL/IEC 60950 & 60065
- Construction: Thick film on ceramic substrate
Buy the Bourns Series CHV High Voltage Chip Resistor: CHV1206FX1005ELF
Order the Bourns high-voltage thick film resistor CHV1206FX1005ELF online today to experience exceptional resistance range, high voltage support up to 3 kV, and RoHS compliance. Ideal for demanding electronic circuits and consumer devices, these resistors ensure durability, stability, and safety. With a power rating up to 1 W at 70°C and a wide operating temperature from -55°C to +155°C, they meet UL and IEC standards. Buy online now for fast delivery and trusted quality for your high-voltage applications.
Buy Bourns high-voltage thick film chip resistor CHV1206FX1005ELF now and ensure reliable performance in high-voltage and consumer electronics applications.
Frequently Asked Questions
Where can I buy Bourns CHV1206FX1005ELF?
You can click on the BUY or RFQ button to purchase CHV1206FX1005ELF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CHV1206FX1005ELF?
You can download the CHV1206FX1005ELF datasheet or visit the Bourns website for support.
Who is the manufacturer of CHV1206FX1005ELF?
Bourns
