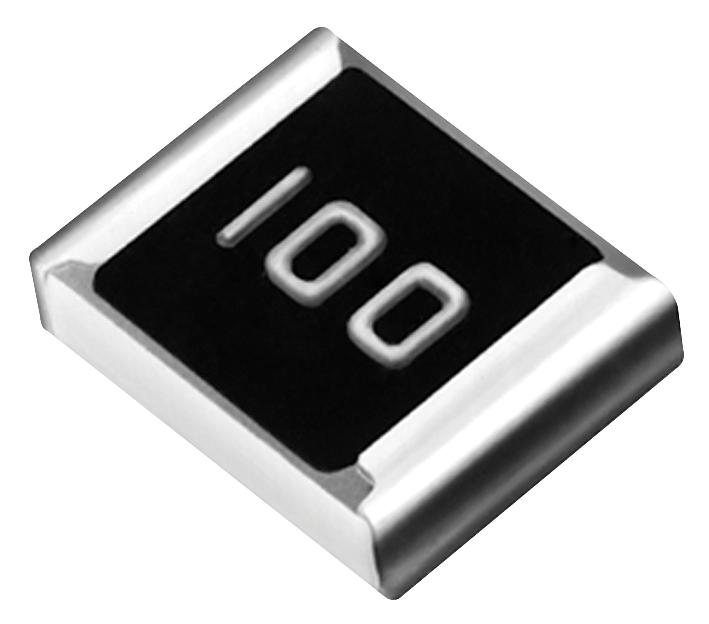

Bourns CR0603JW105GLF Thick Film Chip Resistor
Bourns CR0603-JW-105GLF is a thick film chip resistor designed for precision applications. Featuring a three-layer termination process with a nickel barrier, it provides excellent solderability and prevents leaching. It offers tight tolerance options and is suitable for various electronic circuits where accurate resistance values and reliable performance are critical. The resistor is RoHS compliant and operates within a temperature range of -55°C to +125°C, making it suitable for a broad range of industrial and consumer applications.
Bourns CR0603JW105GLF Thick Film Chip Resistor Specifications:
- Power Rating: 1/10 W
- Operating Temperature Range: -55 °C to +125 °C
- Max Working Voltage: 75 V
- Max Overload Voltage: 150 V
- Resistance Tolerance: ±1 %, ±5 %
- Temperature Coefficient: ±200 ppm/°C
- Zero Ohm Jumper: 50 milliohms max.
- Rated Current: 0.5 A
- Max Overload Current: 1 A
- Moisture Sensitivity Level: 1
Buy the CR0603-JW-105GLF Bourns Thick Film Chip Resistor | myMectronic
Purchase the Bourns CR0603-JW-105GLF Thick Film Chip Resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CR0603JW105GLF?
You can click on the BUY or RFQ button to purchase CR0603JW105GLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CR0603JW105GLF?
You can download the CR0603JW105GLF datasheet or visit the Bourns website for support.
Who is the manufacturer of CR0603JW105GLF?
Bourns
