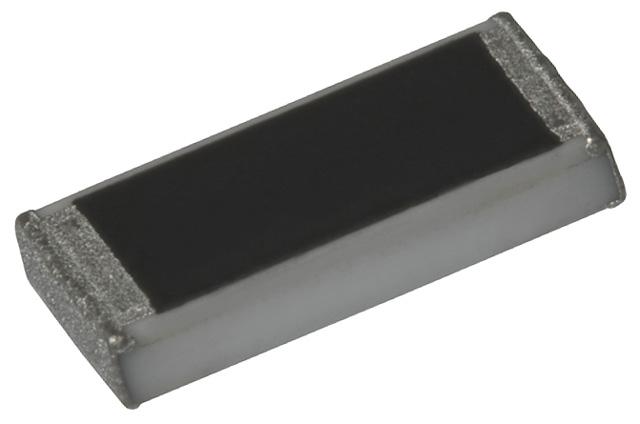

Bourns CRL0603FWR220ELF Low Value Chip Resistor
The CRL Series low value chip resistors are RoHS compliant and designed for precise resistance levels from 0.02 to 9.10 ohms with 1% or 5% tolerance. Available in five package sizes, these resistors feature Tape and Reel packaging for automated assembly. Suitable for various electronic applications, they withstand -55 to +125°C, have a maximum working voltage depending on size, and are resistant to thermal and environmental stresses including overload, soldering heat, and thermal shock. Their construction ensures reliability in high-temperature and high-load conditions, making them ideal for precision electronic circuits.
Bourns CRL0603FWR220ELF Low Value Chip Resistor Specifications:
- Resistance Range: 0.02 to 9.10 ohms with 1% or 5% tolerance
- Power Rating @ 70 °C: 0.100 to 1.00 watt depending on size
- Operating Temperature Range: -55 to +125°C
- Maximum Working Voltage varies by size, up to 2V for small packages
- Material: Thin film resistor with RoHS compliance
- Dimensions: CRLO603 Length 1.60mm, Width 0.80mm; CRL0805 Length 2.00mm, Width 1.25mm; CRL1206 Length 3.20mm; CRL2010 Length 5.00mm; CRL2512 Length 6.30mm
- Environmental Resistance: Thermal shock, overload, soldering heat, load life tested
- Packaging: Tape and reel for automated surface mounting
- Tolerance: 1% or 5%
- RoHS compliance ensures environmentally friendly manufacturing
Buy the Bourns Series CRL Low Value Chip Resistor: CRL0603FWR220ELF
Purchase the Bourns CRL series low value chip resistor online today. Designed for high accuracy from 0.02 to 9.10 ohms, these resistors are RoHS compliant and come in five sizes with Tape and Reel packaging. They provide reliable performance across -55°C to +125°C, withstand thermal shocks, overloads, and soldering heat, making them ideal for precision electronic circuits. Ensure your electronics are efficient and durable by choosing this high-quality resistor for your assembly needs.
Get Bourns CRL0603FWR220ELF today—built for precision and long-lasting durability in your electronic designs.
Frequently Asked Questions
Where can I buy Bourns CRL0603FWR220ELF?
You can click on the BUY or RFQ button to purchase CRL0603FWR220ELF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CRL0603FWR220ELF?
You can download the CRL0603FWR220ELF datasheet or visit the Bourns website for support.
Who is the manufacturer of CRL0603FWR220ELF?
Bourns
