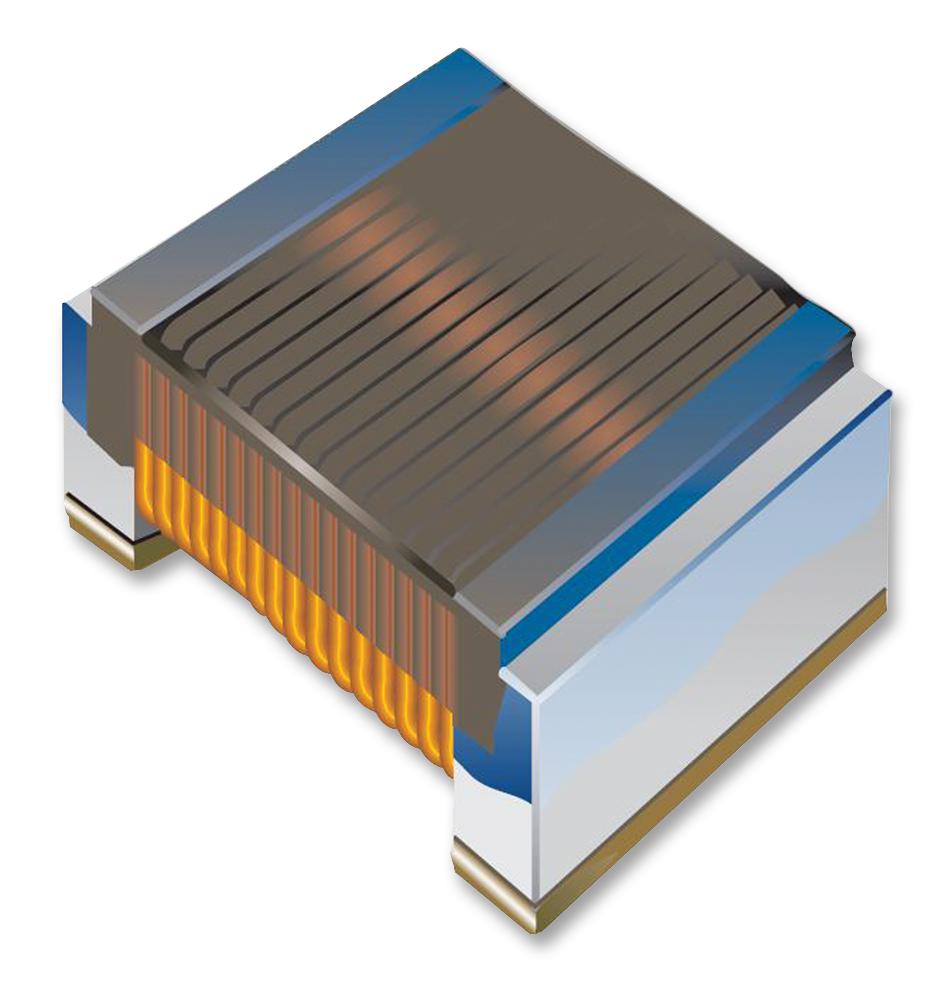

Bourns CW201212R22J High Q Chip Inductor
The CW201212R22J is a high Q chip inductor designed for mobile phones and cellular devices, offering excellent high-frequency performance up to 80 typ. Its small 2.0 mm size makes it ideal for space-constrained electronic applications. It features a high operating temperature of 125°C, RoHS compliance, and a durable ceramic core material. The inductor provides stable inductance values ranging from 22 nH to 910 nH, with high current ratings and robust resistance to soldering heat, making it suitable for various high-frequency circuit applications.
Bourns CW201212R22J High Q Chip Inductor Specifications:
- Inductance Range: 22 nH to 910 nH
- Size: 2.0 mm
- Maximum Operating Temperature: 125°C
- Temperature Rise: Max. 0.06 to 0.48 Ω resistance depending on inductance
- Reflow Soldering Temp: 260°C for 50 sec. max
- Soldering Heat Resistance: 260°C for 5 seconds
- Packaging: 2,000 pieces per reel
- Core Material: Ceramic
- Tolerance: ±5% for inductance values of 12 nH and above
- RoHS compliant, lead-free, suitable for high-frequency RF applications
- Temperature Coefficient: Not specified, stable at high temperatures
- Operating Frequency: Up to 80 typ.
- Application: Mobile phones, VCR, FDD, high-frequency circuits
Buy the Bourns Series W201212 High Q Chip Inductor: CW201212R22J
Purchase the Bourns Series W201212 CW201212R22J high Q chip inductor online today and ensure your electronic projects benefit from superior high-frequency performance, small form factor, and robust temperature tolerance. Designed for mobile phones and cellular applications, this inductor offers high inductance stability, RoHS compliance, and excellent resistance to soldering heat. Its compact size and high-quality ceramic core make it ideal for high-density circuit boards, giving your designs the reliability they need for optimal performance in space-constrained environments.
Order your Bourns Series W201212 CW201212R22J high-performance chip inductor today and enhance your mobile device's RF reliability and space-efficient design.
Frequently Asked Questions
Where can I buy Bourns CW201212R22J?
You can click on the BUY or RFQ button to purchase CW201212R22J from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CW201212R22J?
You can download the CW201212R22J datasheet or visit the Bourns website for support.
Who is the manufacturer of CW201212R22J?
Bourns
