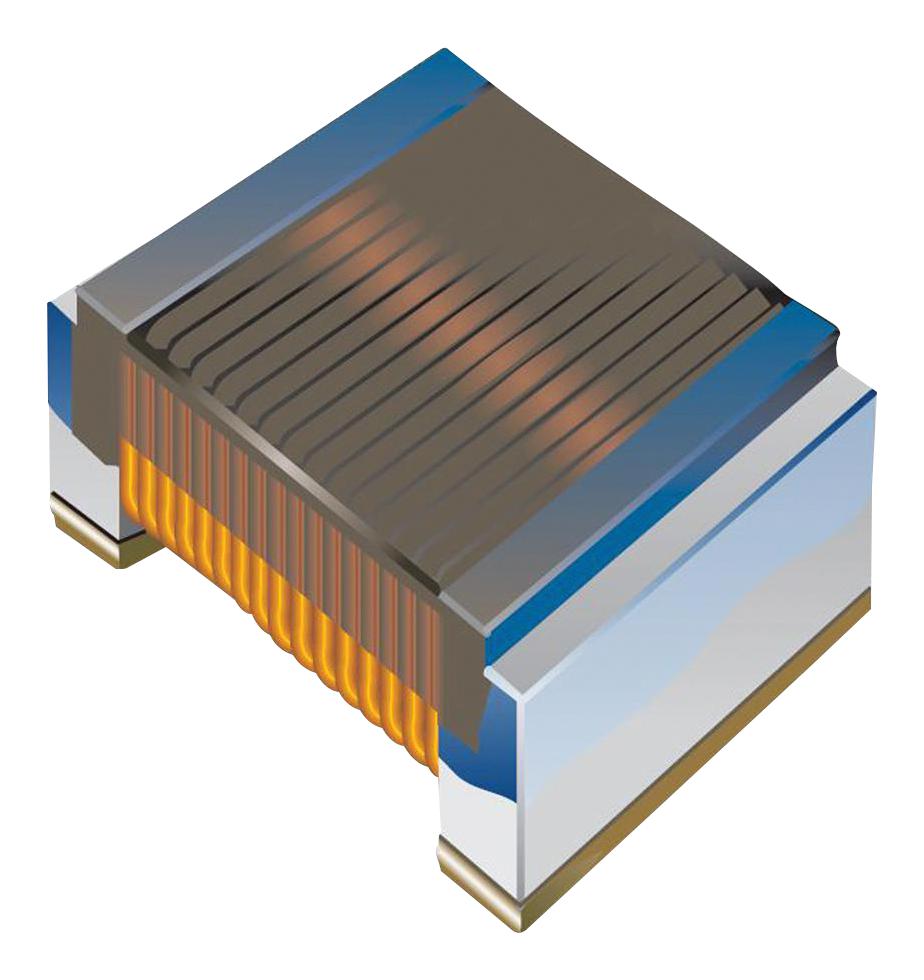

Bourns CW252016R15J High Q Chip Inductor
The Bourns CW252016 series of high-Q chip inductors are designed for use in mobile phones, CTV, VCR, HIC, and FDD applications. These inductors offer a compact 0805 size, high Q factor, and a high operating temperature of 125°C. They are RoHS compliant and available in a range of inductance values to meet diverse circuit requirements. The CW252016-R15J specifically offers an inductance of 150nH with a ±5% tolerance, making it a versatile component for signal filtering, impedance matching, and energy storage in portable electronic devices.
Bourns CW252016R15J High Q Chip Inductor Specifications:
- Inductance: 150 nH
- Inductance Tolerance: ±5%
- Q Factor: 45
- Test Frequency (MHz): 25.2, 100
- Self-Resonant Frequency (MHz): 850
- DC Resistance (Ohms): 0.70
- Rated Current (mA): 580
- Operating Temperature Range (°C): -40 to +125
- Resistance to Soldering Heat (°C): +260, 5 seconds
- Core Material: Ferrite
- Packaging: 2,000 pcs. per reel
Buy the CW252016-R15J BOURNS High Q Chip Inductor | myMectronic
Purchase the Bourns CW252016-R15J chip inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CW252016R15J?
You can click on the BUY or RFQ button to purchase CW252016R15J from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CW252016R15J?
You can download the CW252016R15J datasheet or visit the Bourns website for support.
Who is the manufacturer of CW252016R15J?
Bourns
