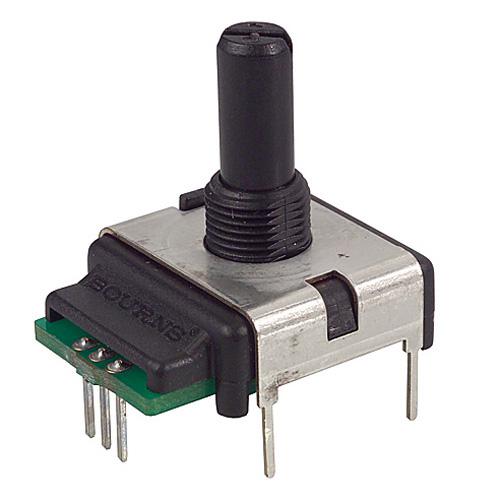

Bourns ECW1JB24AC0024L digital rotary encoder
The ECW series from Bourns features 22mm digital contact rotary encoders designed for precise position sensing and digital control applications. These robust encoders generate a 2-bit quadrature signal with Channel A leading Channel B by 90 degrees, enabling accurate direction detection. Suitable for digital panel controls, they support up to 120 rpm, with resolutions of 6, 9, 12, 24, or 36 pulses per revolution. The encoders feature a sturdy plastic housing, bushing mount, PC pin terminals, IP40 sealing, and operate within -40°C to 85°C, rated for 10mA at 10VDC.
Bourns ECW1JB24AC0024L digital rotary encoder Specifications:
- Diameter: 22 mm
- Output: 2-bit quadrature signal with Channel A leading Channel B by 90°
- Operating Temperature Range: -40°C to 85°C
- Maximum RPM: 120
- Resolutions: 6, 9, 12, 24, 36 pulses per revolution
- Contact Rating: 10mA at 10VDC
- Housing: Sealed IP40 plastic housing
- Mounting: Bushing mount
- Terminals: PC pin
- Environmental Resistance: Long operating life, RoHS compliant
- Mechanical Load: Static shaft side load 79 N-cm (7 lb-in.) maximum
- Weight: approximately 21 grams
- Temperature Resistance: -40°C to 85°C
- Electrical Resistance: 5 ohms maximum
Buy the Bourns Series ECW Rotary Encoder: ECW1JB24AC0024L
Purchase the Bourns ECW series digital rotary encoder ECW1JB24AC0024L online today and benefit from its robust design, high-resolution output options, sealed IP40 housing, and long operational life. Perfect for digital panel controls, speed regulation, menu navigation, and position sensing, this encoder provides precise signal outputs at up to 120 rpm. Its sturdy construction and RoHS compliance ensure durability and eco-friendliness. Elevate your electronics with this high-quality, easy-to-integrate component available now for quick online ordering.
Order your Bourns Series ECW rotary encoder ECW1JB24AC0024L today and enhance your digital control and position sensing projects with reliable performance.
Frequently Asked Questions
Where can I buy Bourns ECW1JB24AC0024L?
You can click on the BUY or RFQ button to purchase ECW1JB24AC0024L from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part ECW1JB24AC0024L?
You can download the ECW1JB24AC0024L datasheet or visit the Bourns website for support.
Who is the manufacturer of ECW1JB24AC0024L?
Bourns
