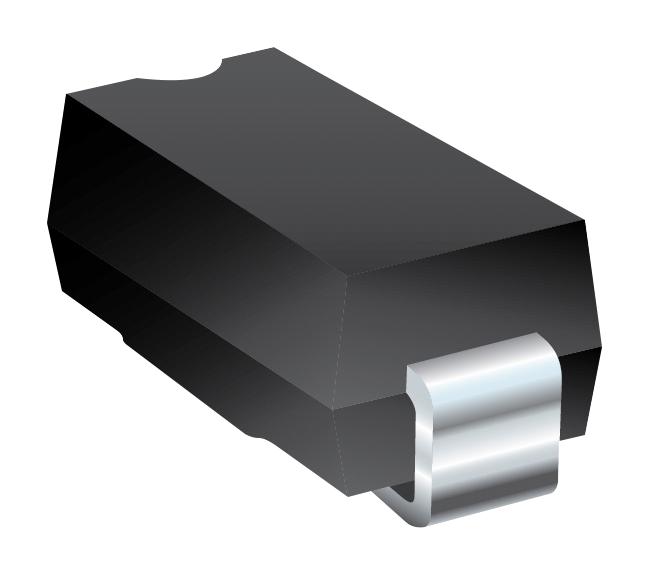

Bourns P6SMB39CAQ Transient Voltage Suppressor Diode
The P6SMB39CAQ is a compact surface-mount transient voltage suppressor diode series designed for surge and ESD protection in electronic circuits. With breakdown voltages ranging from 6.8 V to 550 V, it offers quick response times less than 1.0 picosecond for unidirectional and less than 5.0 picoseconds for bidirectional models. The device is RoHS compliant, halogen free, and features a maximum peak pulse power of 600 watts, suitable for protecting portable communication, computing, and video equipment from voltage transients and electrostatic discharges.
Bourns P6SMB39CAQ Transient Voltage Suppressor Diode Specifications:
- Maximum Peak Pulse Power: 600 Watts
- Breakdown Voltage: 6.8 to 550 V
- Response Time: <1.0 ps for unidirectional, <5.0 ps for bidirectional
- RoHS compliant and halogen free
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Peak Forward Surge Current: 100 Amps (8.3 ms sine wave)
- Device Polarity: Cathode band indicates unidirectional, no band indicates bidirectional
- Environmental: Moisture Sensitivity Level 1, ESD Classification 3B
- Reel Packaging: 500 to 3000 units per reel, tape width 12.00 ± 0.30 mm
Buy the Bourns P6SMB39CAQ – Reliable Transient Voltage Suppressor for Industrial Applications
Secure your electronic devices with the Bourns P6SMB39CAQ series transient voltage suppressor diodes. Designed for reliable surge and ESD protection, these compact surface-mount devices offer breakdown voltages from 6.8 to 550 volts and peak pulse power up to 600 watts. Ideal for industrial, consumer, and communication equipment, they ensure durability, fast response times, and compliance with RoHS and halogen-free standards. Purchase online today to safeguard your circuits with trusted component quality and quick delivery.
Order your Bourns Series P6SMB39CAQ today and ensure your circuits are protected with high-quality, fast-response surge and ESD suppression solutions.
Frequently Asked Questions
Where can I buy Bourns P6SMB39CAQ?
You can click on the BUY or RFQ button to purchase P6SMB39CAQ from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part P6SMB39CAQ?
You can download the P6SMB39CAQ datasheet or visit the Bourns website for support.
Who is the manufacturer of P6SMB39CAQ?
Bourns
