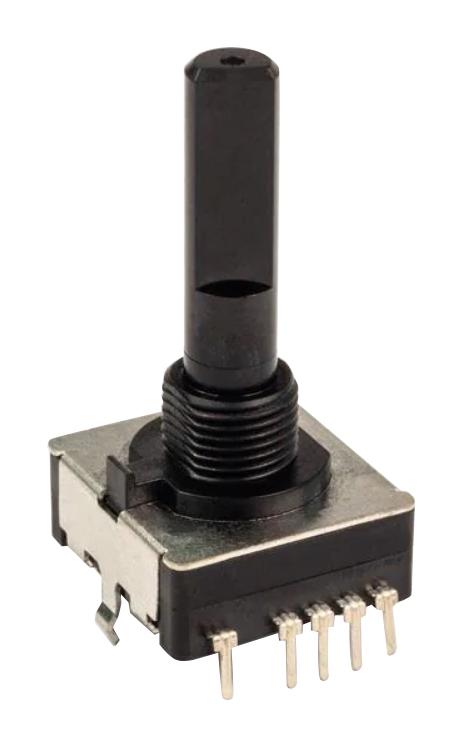

Bourns PAC18R141D19F Absolute Encoder
The Bourns PAC18R series is a low-profile, absolute rotary encoder offering 4-bit gray code output and sealed shaft design, suitable for audio and industrial applications. It features a haptic detent feedback mechanism, insulated plastic shaft, and bushing, with an IP64 rating for dust and moisture resistance. Operating temperature ranges from -35°C to +70°C, with a mechanical angle of 360° continuous and a durable design supporting at least 30,000 cycles. The encoder is ideal for precision control in compact setups, with various mounting and shaft options available.
Bourns PAC18R141D19F Absolute Encoder Specifications:
- Output: 4-bit gray code
- Contact Rating: 1mA @ 10 VDC
- Insulation Resistance: 10 megohms minimum @ 500 VDC
- Dielectric Withstanding Voltage: Sea Level 500 VAC minimum
- Contact Resistance: 100 ohms maximum
- Operating Temperature Range: -35 °C to +70 °C
- Storage Temperature Range: -40 °C to +80 °C
- Ingress Protection Rating: IP64
- Mechanical Angle: 360 ° continuous
- Mechanical Life: 30,000 cycles minimum
- Operating RPM: up to 60
- Shaft Length Options: 19.5mm, 21.5mm, 28.9mm
- Shaft Type: Insulated flatted shaft
- Mounting: Bushing with or without thread, various configurations
- Torque: Starting and Running 10 to 200 gf·cm, Detent 350 to 650 gf·cm
- Soldering: Wave 260 °C for 3 sec, Manual 350 °C for 3 sec
Buy the Bourns Series PAC18R Absolute Encoder: PAC18R141D19F
Purchase the Bourns PAC18R141D19F online today to ensure precise and reliable control in your electronic or industrial project. This high-quality encoder features a durable sealed shaft, IP64 protection, and a flexible mounting system, making it suitable for a wide range of applications. With a continuous 360° rotation and smart detent feedback, it offers smooth operation and long lifespan, supporting up to 30,000 cycles. Improve your device’s performance by sourcing this robust and high-performance encoder directly from our online store now.
Get Bourns PAC18R141D19F today—built for precision, durability, and reliable control in compact environments.
Frequently Asked Questions
Where can I buy Bourns PAC18R141D19F?
You can click on the BUY or RFQ button to purchase PAC18R141D19F from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PAC18R141D19F?
You can download the PAC18R141D19F datasheet or visit the Bourns website for support.
Who is the manufacturer of PAC18R141D19F?
Bourns
