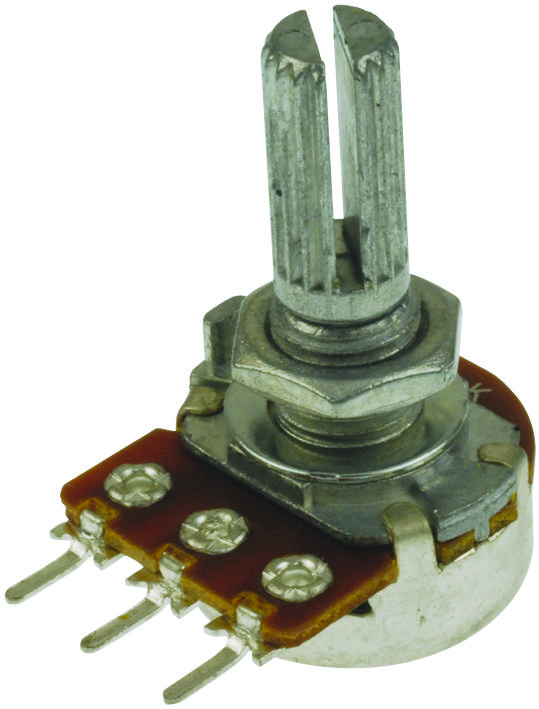

Bourns PDB182K220K102B 17 mm Rotary Potentiometer
The Bourns PDB182-K220K-102B is a 17 mm rotary potentiometer designed for applications requiring precise rotational control. It incorporates features such as single and dual section control, metal shaft styles, and carbon element construction. This potentiometer is suitable for a wide range of industrial applications, including car radios, amplifiers, and PC monitors. Its robust design and reliable performance make it a valuable component in various electronic systems.
Bourns PDB182K220K102B 17 mm Rotary Potentiometer Specifications:
- Features: ['Single and dual section control', 'Metal shaft styles', 'Carbon element', 'Center and multiple detent options', 'Wide range of resistance tapers', 'Plain or knurled shaft options']
- Taper: Linear, audio Standard
- Resistance Range: 1 K ohms to 1 M ohms
- Resistance Tolerance: ±20 %
- Residual Resistance: 1 % max.
- Operating Temperature: -10 °C to +50 °C
- Power Rating Linear: 0.2 watt
- Power Rating Dual Section: 0.125 watt
- Power Rating Audio: 0.1 watt
- Maximum Operating Voltage Linear: 200 V
- Maximum Operating Voltage Audio: 150 V
- Sliding Noise: 47 mV max.
- Mechanical Angle: 300 ° ±5 °
- Rotational Torque: 10 to 150 gf-cm
- Detent Torque: 150 to 500 g-cm
- Stop Strength: 5 kg-cm min.
- Rotational Life: 15,000 cycles
- Soldering Condition: 260 °C max. within 3 seconds
- Hardware: One flat washer and mounting nut supplied per potentiometer with bushing
