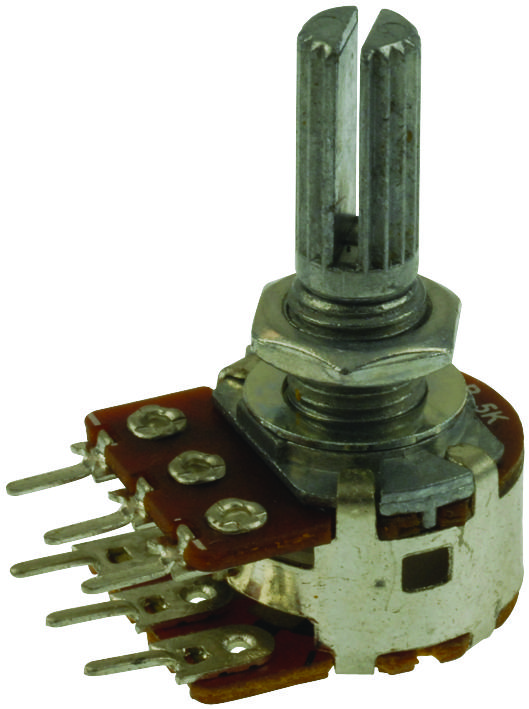

Bourns PDB182K220K502B 17 mm Rotary Potentiometer
The Bourns PDB182-K220K-502B is a 17 mm rotary potentiometer designed for applications requiring precise rotational control. It incorporates features such as single and dual section control, metal shaft styles, carbon element construction, and a range of detent options. This potentiometer is suitable for use in car radios, amplifiers, PCs, and appliances, offering reliable performance and versatility. It is RoHS compliant and available with linear, audio, and reverse audio taper options.
Bourns PDB182K220K502B 17 mm Rotary Potentiometer Specifications:
- Features: ['Single and dual section control', 'Metal shaft styles', 'Carbon element', 'Center and multiple detent options', 'Wide range of resistance tapers', 'Plain or knurled shaft options']
- Taper: Linear, audio Standard
- Resistance Range: 1 K ohms to 1 M ohms
- Resistance Tolerance: ±20 %
- Residual Resistance: 1 % max.
- Operating Temperature: -10 °C to +50 °C
- Power Rating Linear: 0.2 watt
- Power Rating Dual Section: 0.125 watt
- Power Rating Audio: 0.1 watt
- Maximum Operating Voltage Linear: 200 V
- Maximum Operating Voltage Audio: 150 V
- Sliding Noise: 47 mV max.
- Mechanical Angle: 300 ° ±5 °
- Rotational Torque: 10 to 150 gf-cm
- Detent Torque: 150 to 500 g-cm
- Stop Strength: 5 kg-cm min.
- Rotational Life: 15,000 cycles
- Soldering Condition: 260 °C max. within 3 seconds
- Hardware: One flat washer and mounting nut supplied per potentiometer with bushing
