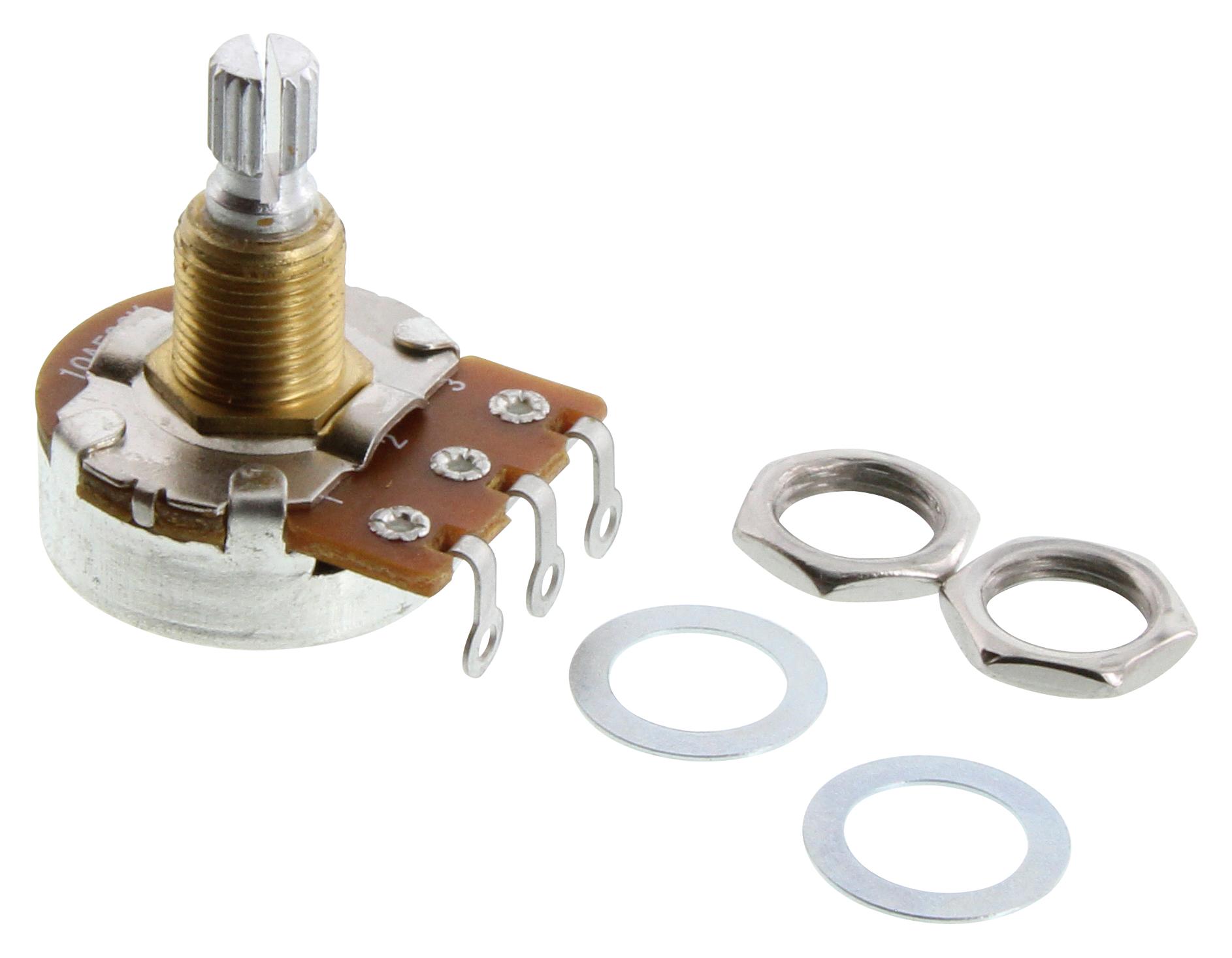

Bourns PDB241GTR01504A2 24 mm Guitar Potentiometer
The Bourns PDB241-GTR series is a line of 24mm guitar potentiometers designed for applications requiring precise control and reliability. These potentiometers feature a carbon element construction, offering low torque and a wide range of resistance values to suit diverse needs. They are RoHS compliant and available with knurled or plain shaft options, as well as solder lugs or long shaft configurations. Commonly used in musical instruments and other audio equipment, the PDB241-GTR series provides dependable performance and ease of integration.
Bourns PDB241GTR01504A2 24 mm Guitar Potentiometer Specifications:
- Low Torque: Yes
- Element: Carbon
- Shaft Options: Knurled or Plain
- Bushing: Metal
- Shaft: Metal
- Resistance Values: Variety
- RoHS Compliant: Yes
- Solder Lugs: Rear
- Taper Options: Audio or Linear
- Operating Temperature: -10 °C to +70 °C
- Power Rating: 0.25 watt
- Maximum Operating Voltage: 250 V
- Rotational Noise: 150 mV max
- Mechanical Angle: 300 ° ±5 °
- Rotational Torque: 10 to 45 g-cm
- Stop Strength: 8 kg-cm min
- Rotational Life: 15,000 cycles min
- Soldering Condition Manual: 300 °C within 3 seconds
- Soldering Condition Wave: 260 °C within 3 seconds
- Hardware: Two flat washers and two mounting nuts supplied
- Resistance Range: 10K to 1M ohm
- Resistance Tolerance: ±20%
Buy the PDB241-GTR01-504A2 BOURNS 24 mm Guitar Potentiometer | myMectronic
Purchase the Bourns PDB241-GTR01-504A2 securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Bourns PDB241GTR01504A2?
You can click on the BUY or RFQ button to purchase PDB241GTR01504A2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PDB241GTR01504A2?
You can download the PDB241GTR01504A2 datasheet or visit the Bourns website for support.
Who is the manufacturer of PDB241GTR01504A2?
Bourns
