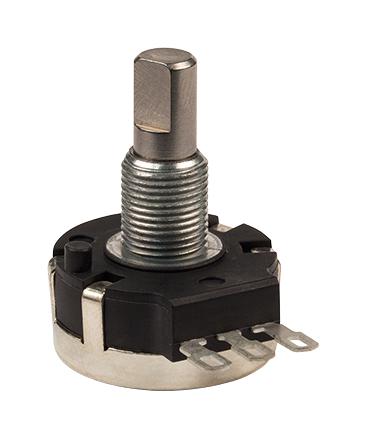

Bourns PDF241S425F103B0 Long Life Potentiometer
The Bourns PDF24 series is a long life potentiometer designed for high reliability in demanding applications such as medical diagnostics, test equipment, and avionics. Featuring a durable carbon element, metal shaft, and an anti-rotation pin, it offers electronic precision with linear or audio taper options. With a robust operating temperature range of -10°C to +85°C and a power rating of 0.5 watt, the potentiometer provides excellent mechanical longevity with a rotational life of 1,000,000 revolutions. Ideal for industrial, medical, and communication equipment, it combines durability and precise control in a compact 24 mm design.
Bourns PDF241S425F103B0 Long Life Potentiometer Specifications:
- Mechanical Angle: 300° ±10°
- Rotational Torque: 5 to 70 g-cm
- Stop Strength: 9 kg·cm min.
- Rotational Life: 1,000,000 shaft revolutions
- Operating Temperature: -10°C to +85°C
- Power Rating: 0.5 watt
- Maximum Operating Voltage: 200 VDC
- Linearity: 43%
- Resistances: 1K to 1M ohms, tolerance +10%
- Tapers: Linear and Audio options
- IP Rating: IP40
- Soldering Condition: Manual soldering at 350°C for 3.5 seconds
- Hardware: Flat washer and mounting nut included
- Shaft Types: Flatted or Slotted shaft
- Resistance Table: 7K to 1M ohms with specific codes
- Compliance: RoHS compliant
Buy the Bourns Series PDF24 Long Life Potentiometer: PDF241S425F103B0
Enhance your electronic projects with the Bourns Series PDF24 long life potentiometer. Featuring durable carbon elements, a metal shaft, and multiple resistance options, it offers high reliability and precise control. Compatible with medical, test, and avionics equipment, this 24 mm device supports a rotational life of 1,000,000 revolutions, making it ideal for demanding industrial applications. Easy to install and RoHS compliant, it guarantees long-term performance and stability for your critical systems. Order online now for fast delivery and trusted quality.
Order your Bourns Series PDF24 long life potentiometer today and ensure reliable, high-precision control for your medical, industrial, or communication projects.
Frequently Asked Questions
Where can I buy Bourns PDF241S425F103B0?
You can click on the BUY or RFQ button to purchase PDF241S425F103B0 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PDF241S425F103B0?
You can download the PDF241S425F103B0 datasheet or visit the Bourns website for support.
Who is the manufacturer of PDF241S425F103B0?
Bourns
