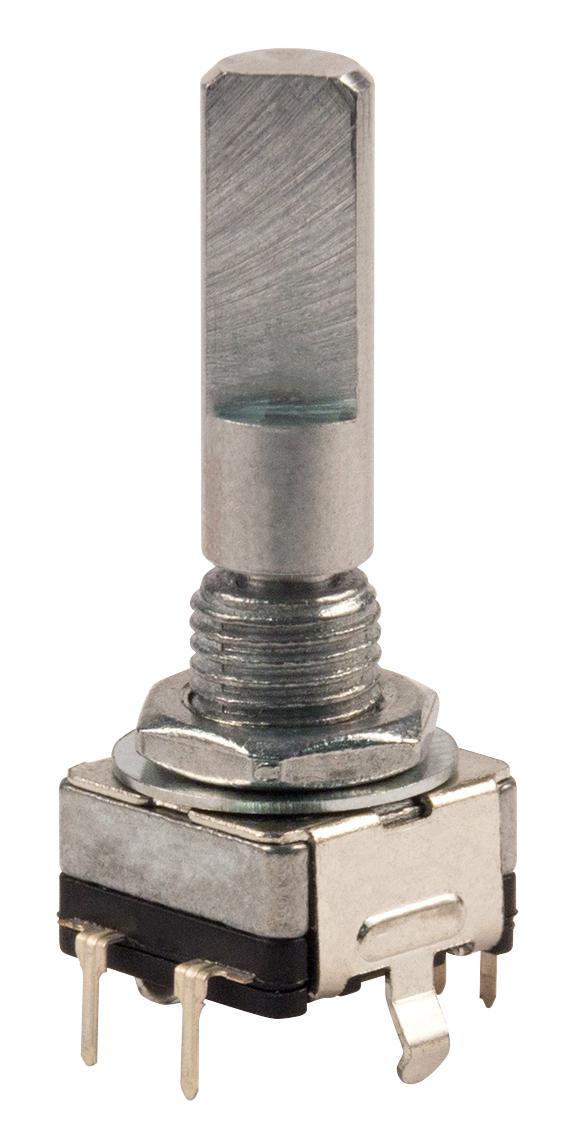

Bourns PEC11H4220KS0024 Rotary Encoder
The PEC11H series high-precision rotary encoder offers 16 detents per revolution with a robust metal shaft and push switch option ideal for audio, audiovisual, consumer appliances, and environmental controls. Designed for durability, it provides high rotational life, a compact 11 mm diameter, and RoHS compliance. Suitable for control and tuning applications, it features reliable electrical and mechanical characteristics, including a 10 mA @ 5 VDC contact rating and IP40 rating for protection. The encoder is used in musical instrumentation, communication devices, and various consumer electronics for precise position feedback and user interface control.
Bourns PEC11H4220KS0024 Rotary Encoder Specifications:
- Diameter: 11 mm
- Detent Options: 8, 16, 20, 24, 30 detents
- Shaft Length: 15.0 mm, 25.0 mm, 200 mm, 30.0 mm options
- Shaft Style: Metal flat, knurled
- Switch Type: Momentary SPST push switch
- Electrical Resistance: 100 milliohms maximum
- Contact Rating: 10 mA at 5 VDC
- Insulation Resistance: 100 megohms @ 250 VDC
- Dielectric Voltage: 300 VAC minimum
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -35°C to +85°C
- Humidity: MIL-STD-202, Method 103B
- Vibration: 10-55 Hz, amplitude 1.5 mm
- Shock: 100 G
- Rotational Life: 100,000 cycles minimum
- IP Rating: IP40
- Mechanical Angle: 360° continuous
- Torque: 210-470 gf-cm
- Switch Actuation Force: 50 N
- Weight: 5 g
- Terminals: Printed circuit board
- Soldering Conditions: 260°C for 3 seconds
- Hardware: Washer and mounting nut included
- Resolution: 8, 10, 12 pulses per 360°
- Compliance: RoHS
Buy the Bourns Series EC11H Rotary Encoder: PEC11H4220KS0024
Discover the high-precision Bourns PEC11H4220KS0024 rotary encoder, designed for durability and accuracy in control interfaces, audio-visual equipment, and consumer electronics. Featuring 16 detents, a robust metal shaft, and push button options, it provides reliable position feedback for tuning, level control, and environmental adjustments. Its compact size, RoHS compliance, IP40 rating, and long electrical/mechanical life make it ideal for various applications requiring precise rotational sensing and user interface control. Purchase online today for quality and reliability.
Get Bourns PEC11H4220KS0024 today—built for precision and long-lasting durability in control and tuning applications.
Frequently Asked Questions
Where can I buy Bourns PEC11H4220KS0024?
You can click on the BUY or RFQ button to purchase PEC11H4220KS0024 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PEC11H4220KS0024?
You can download the PEC11H4220KS0024 datasheet or visit the Bourns website for support.
Who is the manufacturer of PEC11H4220KS0024?
Bourns
