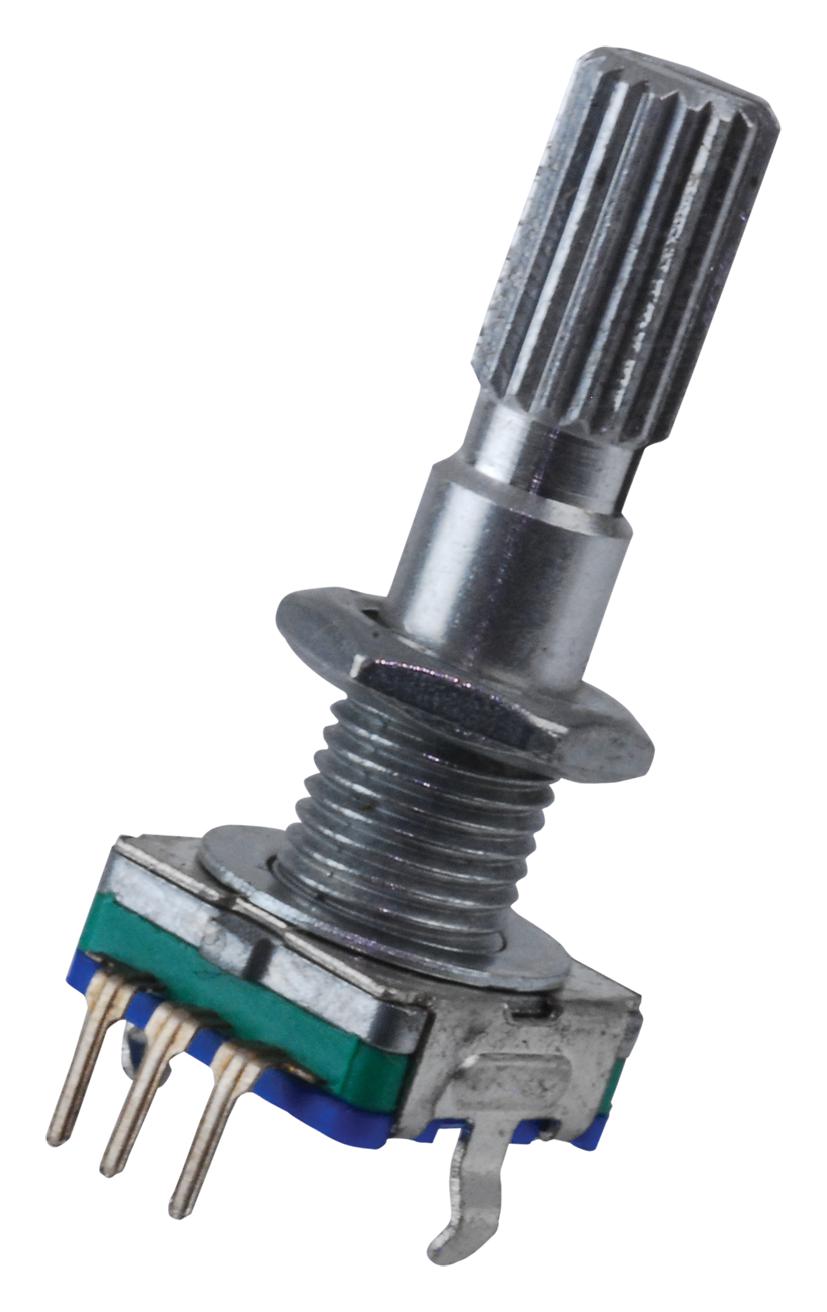

Bourns PEC11L4125KN0020 Incremental Encoder
The PEC11L-4125K-N0020 is a compact, low-profile incremental encoder measuring 11mm in size, engineered for precise rotational control. It features a 2-bit quadrature output with a resolution of 20 pulses per revolution and includes 20 detents, making it ideal for audio, consumer electronics, and communication applications. The encoder boasts a durable metal knurled bushing and a standard 25mm shaft for easy mounting. It has a high rotational life of over 100,000 cycles, switch lifespan of 100,000 actuations, an IP40 rating, and can operate within -40°C to +85°C temperature range, ensuring reliable performance in various environments.
Bourns PEC11L4125KN0020 Incremental Encoder Specifications:
- Size: 11 mm diameter, 25 mm shaft length
- Output: 2-bit quadrature code, 20 pulses per revolution
- Detents: 20 detents per 360°, resolution 20 pulses
- Electrical Resistance: 2100 milliohms maximum
- Contact Rating: 10 mA @ 5 VDC
- Switch Type: Contact Push ON, 100,000 cycles minimum
- Environmental Rating: IP40, operating temperature -40°C to +85°C
- Rotational Life: over 100,000 cycles
- Mechanical Angle: 360°, continuous rotation
- Torque: 70 N-cm maximum, detent torque 20-200 gf-cm
- Mounting: Printed circuit board terminals, hardware included
- Soldering: Wave soldering compatible at 260°C for 3-5 sec
- Weight: approximately 5 grams
- Switch Travel: 0.5 mm ±0.3 mm
Buy the Buy BOURNS PEC11L Series Part Number PEC11L4125KN0020 Online
Purchase the BOURNS PEC11L-4125K-N0020 encoder online today for high-quality, durable rotational control in various electronic applications. Its compact design fits easily into tight spaces, while its high lifespan ensures long-term reliability. Whether used for audio tuning, environmental controls, or communication systems, this encoder delivers precise feedback with minimal maintenance. Take advantage of our fast shipping and straightforward ordering process to get your project moving quickly. Trust in BOURNS quality for all your control system needs and enhance your product’s performance today.
Order your BOURNS PEC11L-4125K-N0020 compact encoder today and ensure accurate, reliable control for your audio, communication, or consumer electronics projects.
Frequently Asked Questions
Where can I buy Bourns PEC11L4125KN0020?
You can click on the BUY or RFQ button to purchase PEC11L4125KN0020 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PEC11L4125KN0020?
You can download the PEC11L4125KN0020 datasheet or visit the Bourns website for support.
Who is the manufacturer of PEC11L4125KN0020?
Bourns
