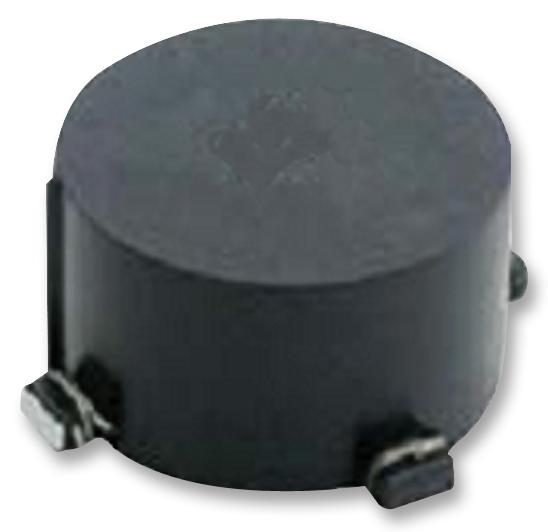

Bourns PM370060RC SMD Common Mode Choke
The Bourns PM3700 series offers a range of SMD common mode chokes designed to effectively filter noise and unwanted signals in electronic circuits. The PM3700-60-RC variant boasts a compact form factor, making it suitable for space-constrained applications. With a current rating of up to 7A and RoHS compliance, this choke provides reliable performance while meeting environmental standards. It's commonly used in power supplies, DC-DC converters, and other applications where EMI reduction is critical.
Bourns PM370060RC SMD Common Mode Choke Specifications:
- Applications: Filtering
- Features: Compact size, RoHS compliant, Current rating up to 7A
- Inductance: 0.2 mH @ 1 KHz
- DCR: 0.070 Ω Max
- Irms: 2.0 A
- Leakage Inductance: 0.4 μH Typ
- Typical Frequency Range: 100 KHz - 10 MHz
- Operating Temperature: -55 °C to +125 °C
- Storage Temperature: -55 °C to +125 °C
- Dielectric Strength: 500 Vrms between windings
- Core Material: Ferrite
- Terminal Coating: Sn-Ag-Cu alloy
- Packaging: 200 pcs. per 13-inch reel
Buy the PM3700-60-RC BOURNS SMD Common Mode Choke | myMectronic
Securely purchase the Bourns PM3700-60-RC SMD Common Mode Choke online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Bourns PM370060RC?
You can click on the BUY or RFQ button to purchase PM370060RC from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PM370060RC?
You can download the PM370060RC datasheet or visit the Bourns website for support.
Who is the manufacturer of PM370060RC?
Bourns
