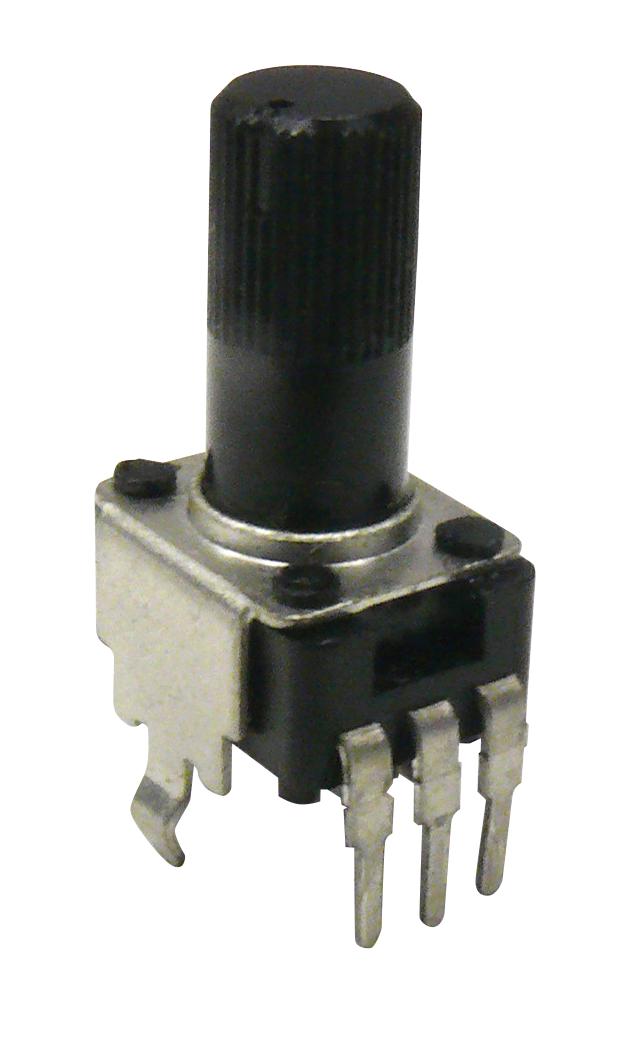

Bourns PTV09A4225SB104 Precision Potentiometer
The PTV09A4225SB104 is a 9 mm potentiometer designed for precise adjustment in electronic circuits. Features include a carbon element, insulated shaft, wide mounting options, and a center detent. Suitable for commercial communications, audio equipment, and consumer electronics, it offers reliable performance with a resistive range from 1K ohms to 1 M ohms and residual resistance up to 500 ohms. Its robust construction handles operating temperatures from -10°C to +50°C, with a power rating of 0.05 watt and a maximum voltage of 20 VDC or 50 VAC, ensuring durability in various applications.
Bourns PTV09A4225SB104 Precision Potentiometer Specifications:
- Resistance Range: 1K ohms to 1 M ohms
- Residual Resistance: 500 ohms or +1 % max.
- Operating Temperature: -10°C to +50°C
- Power Rating: 0.05 watt
- Maximum Operating Voltage: 20 VDC, 50 VAC
- Mechanical Rotation: 280° ±10°
- Shaft Lengths: 15mm, 20mm, 25mm, 30mm
- Shaft Styles: Flat, Insulated Knurled (18 Teeth), Insulated Knurled (40 Teeth)
- Mounting Configurations: Horizontal/Rear, Vertical/Side with bushing or bushingless
- Detent: Center detent option available
- RoHS compliant
- Standard Resistance Tolerance: ±20%
- Mechanical Torque: 10 to 100 g-cm or 20 to 200 gf-cm
- Stop Strength: 2 kg-cm min.
- Number of cycles: 10,000
Buy the Bourns PTV09A4225SB104 – Reliable Potentiometer for Industrial Applications
Purchase the Bourns PTV09A4225SB104 potentiometer online today and enjoy high reliability and precise adjustment capabilities for your electronic projects. With a compact 9mm size, various mounting styles, and resistance options up to 1M ohms, this component is ideal for audio equipment, communication devices, and consumer electronics. Its rugged construction withstands -10°C to +50°C temperatures and handles up to 0.05 watt power rating. Secure your electronics with this durable, RoHS-compliant potentiometer, ensuring optimal performance in your applications. Buy now and enhance your device’s accuracy and durability.
Get Bourns PTV09A4225SB104 today—built for precision and long-lasting durability in electronic control systems.
Frequently Asked Questions
Where can I buy Bourns PTV09A4225SB104?
You can click on the BUY or RFQ button to purchase PTV09A4225SB104 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PTV09A4225SB104?
You can download the PTV09A4225SB104 datasheet or visit the Bourns website for support.
Who is the manufacturer of PTV09A4225SB104?
Bourns
